INJECTOR CUT CIRCUITS
Please note that the wiring diagrams provided on this website are intended for use by qualified LPG installers only and All Cylinder Testing can not take responsibility for any problems caused by incorrect interpretation of the schematics provided.
FORD
- EA/EB-1990 CFI

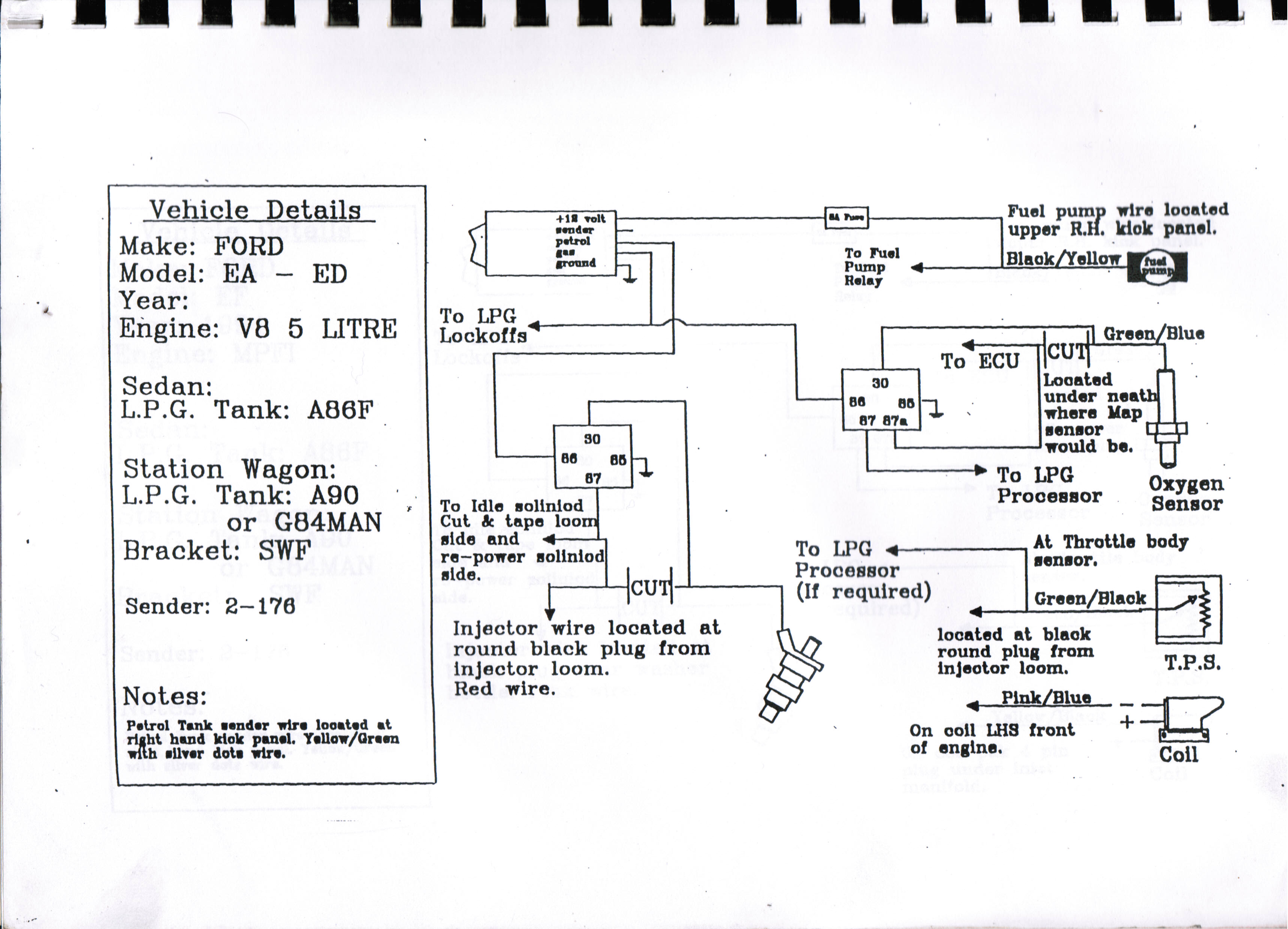

- EA-ED V8 5 LITRE
- EA/ED-1988-92 MPFI

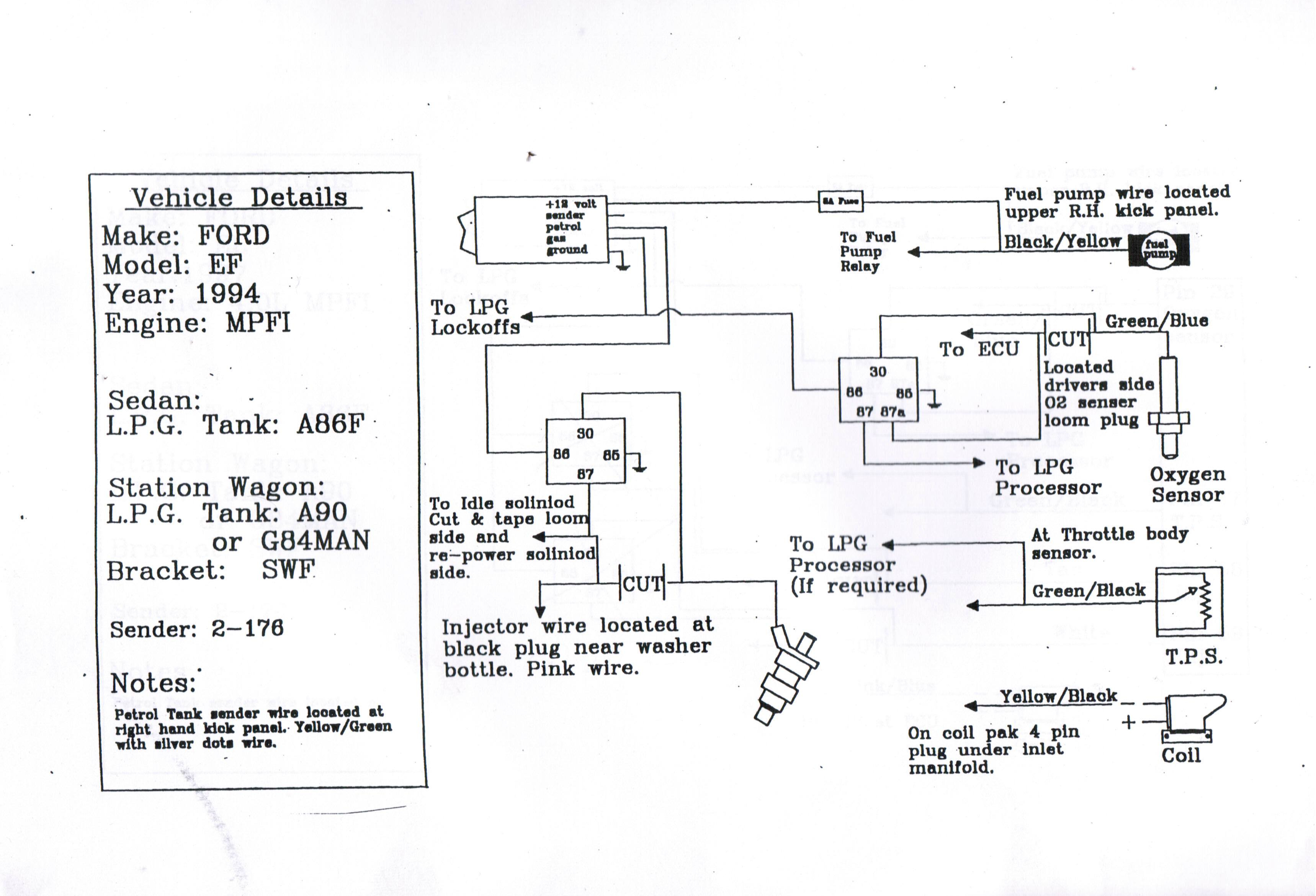

- EF-1994 MPFI
- EL-1997 4.0L MPFI

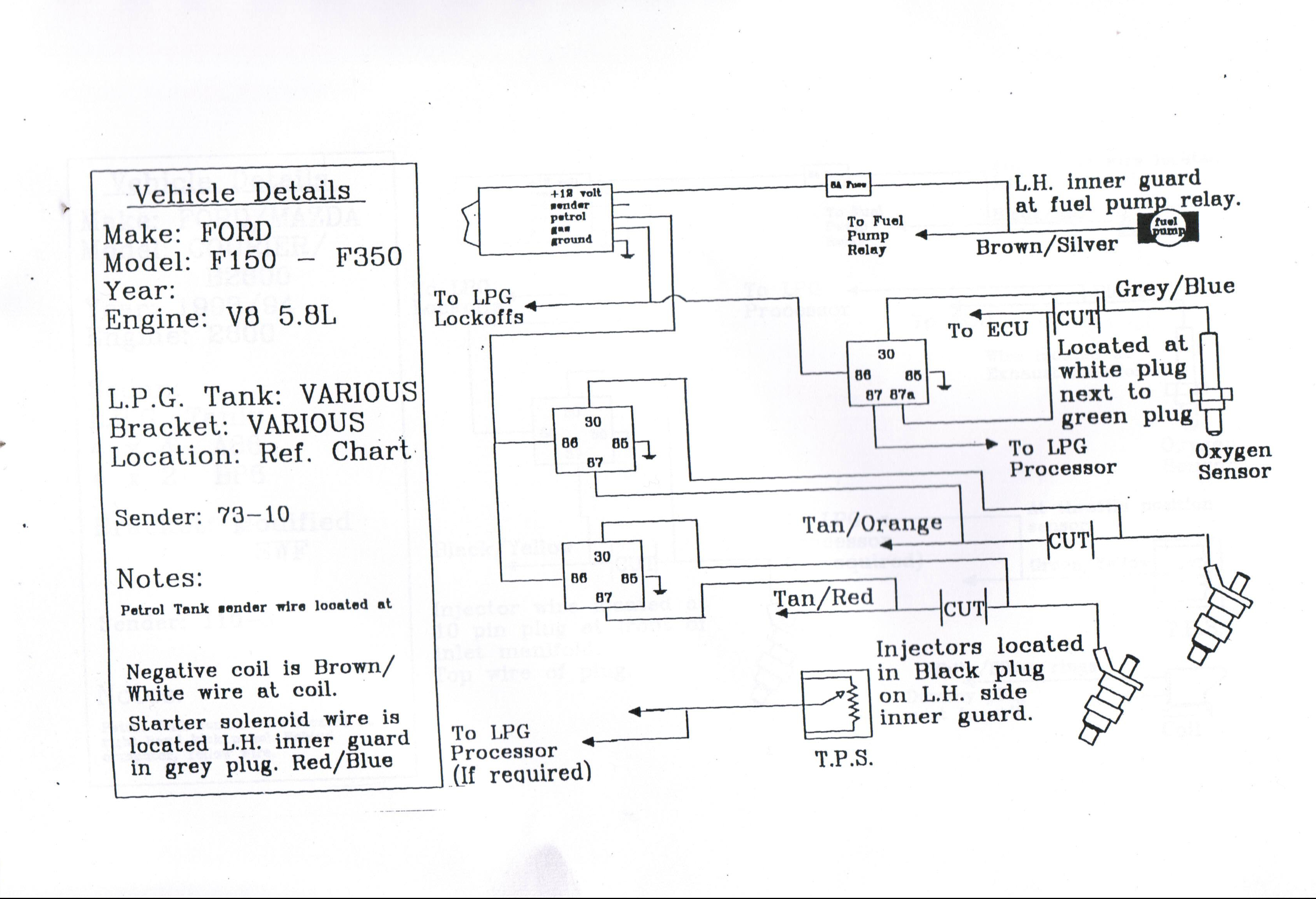

- F150-350 V8 5.8L

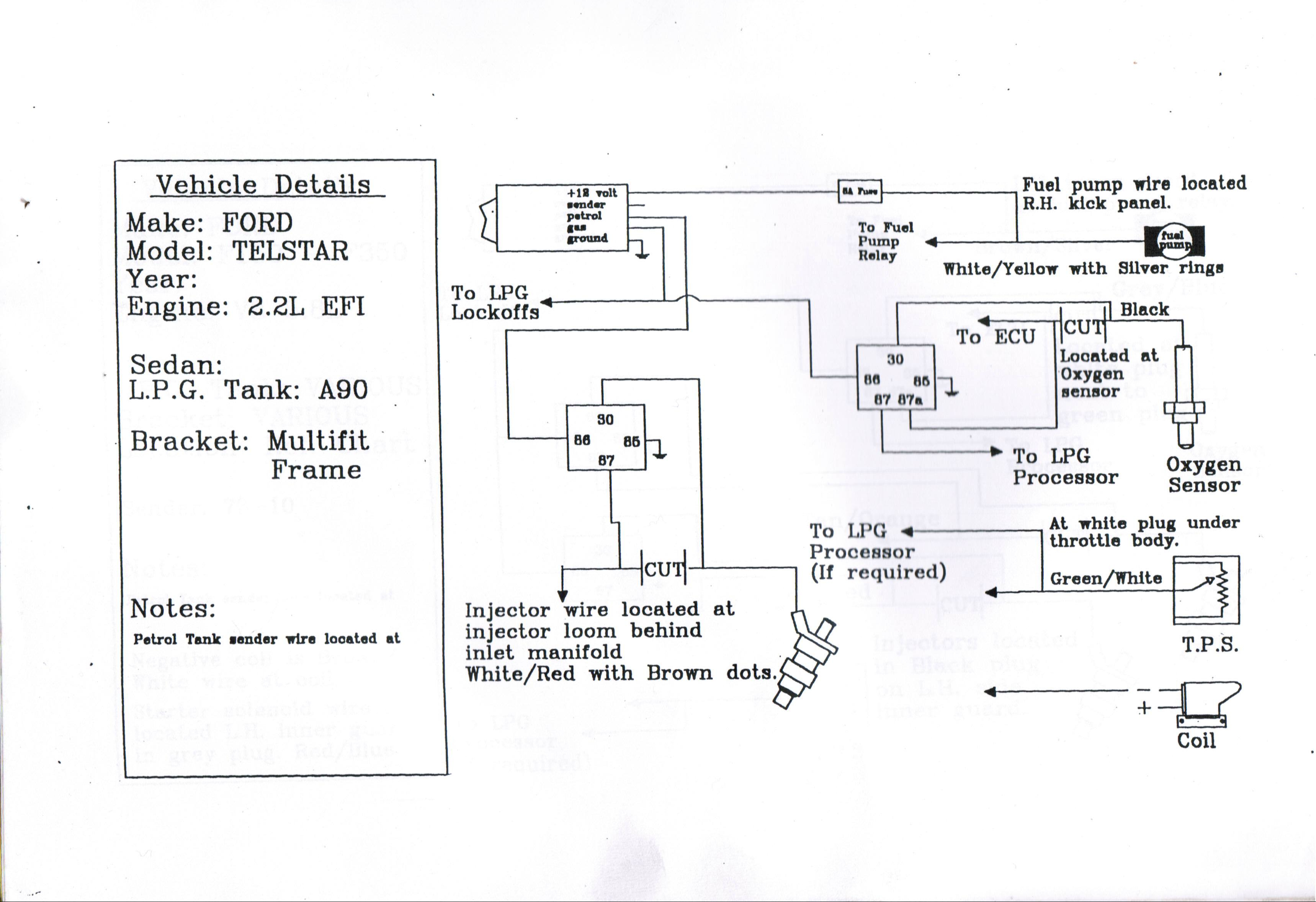

- TELSTAR 2.2L EFI

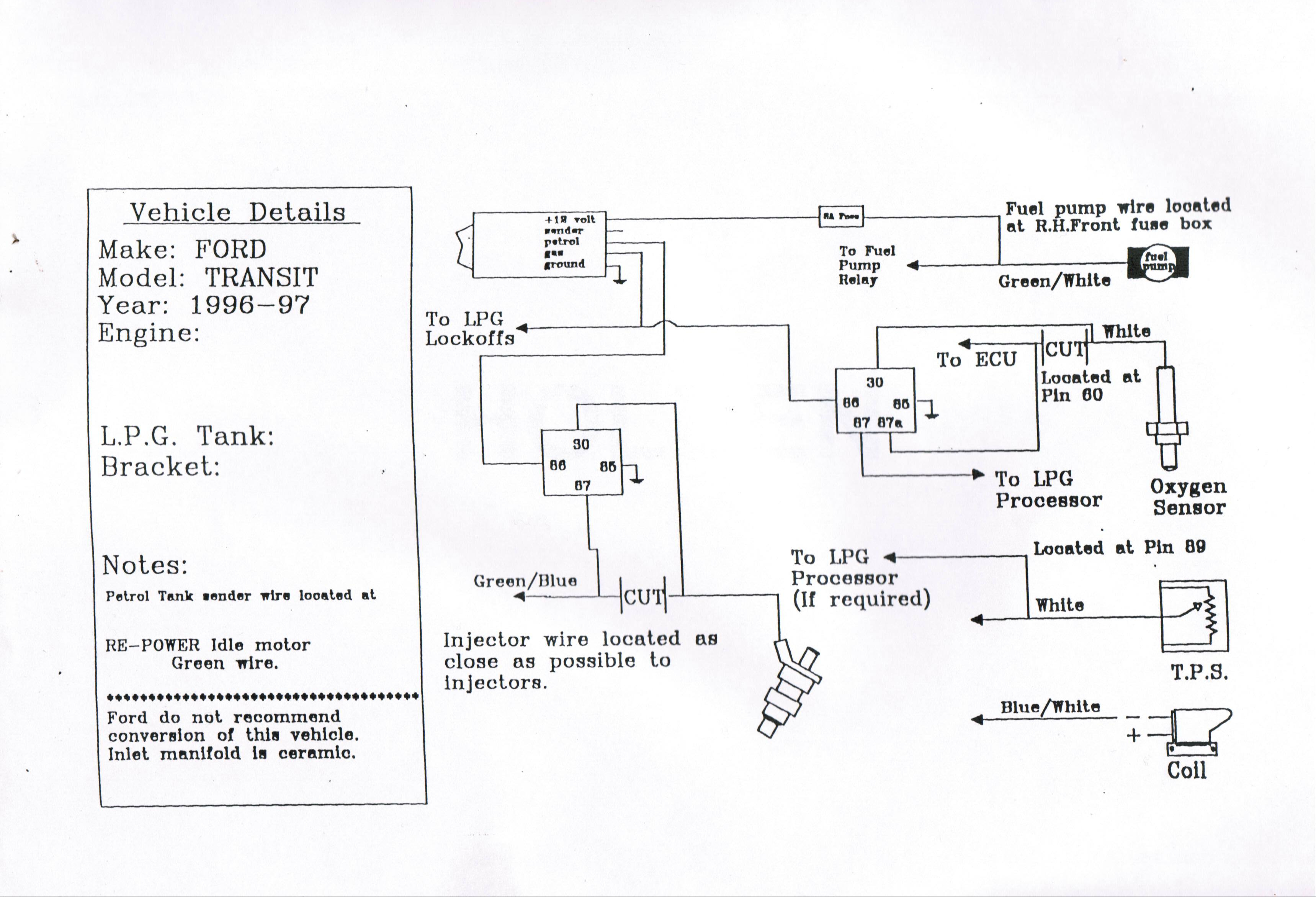

- FORD TRANSIT 96-97
- XE

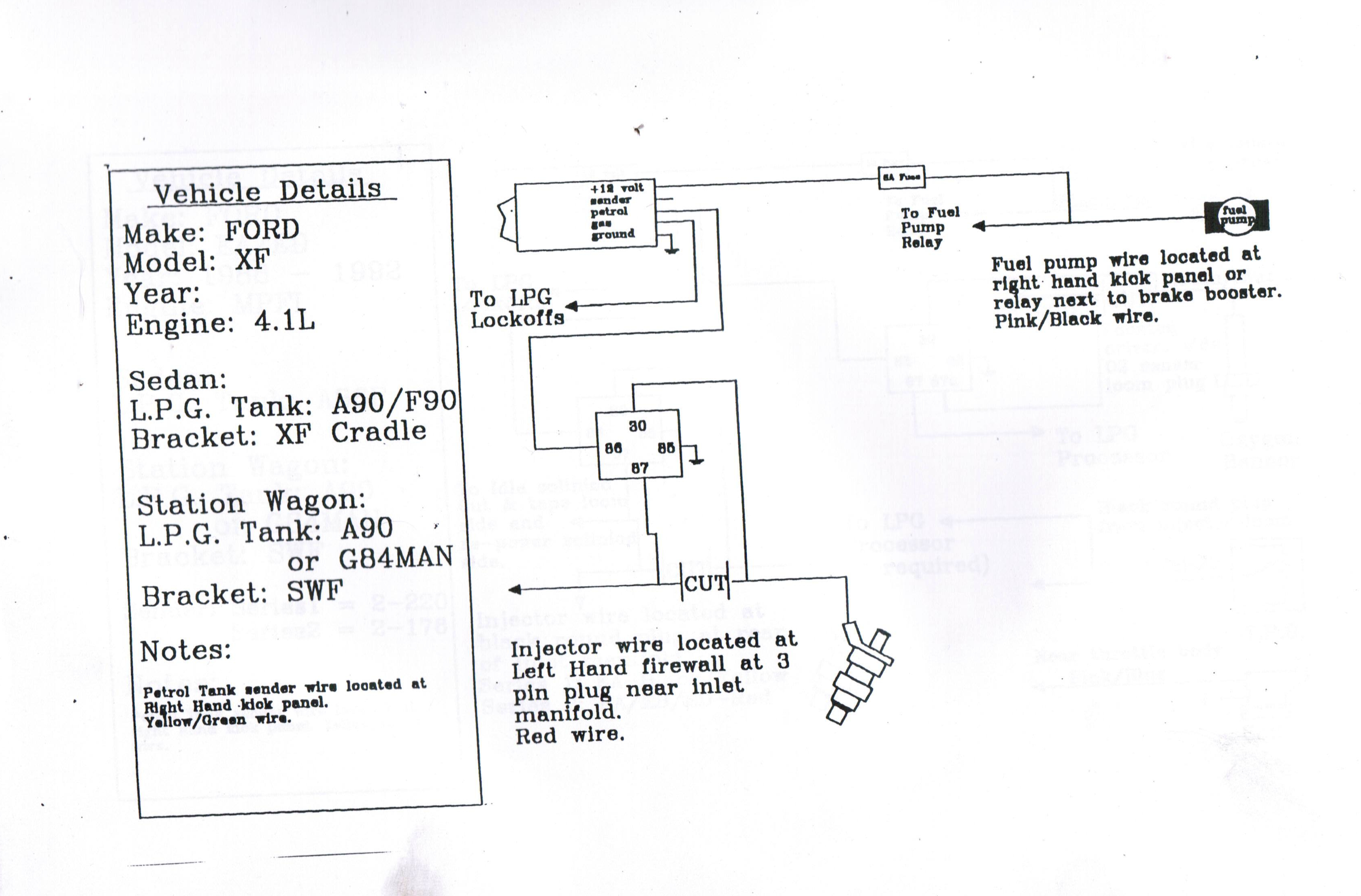

- XF

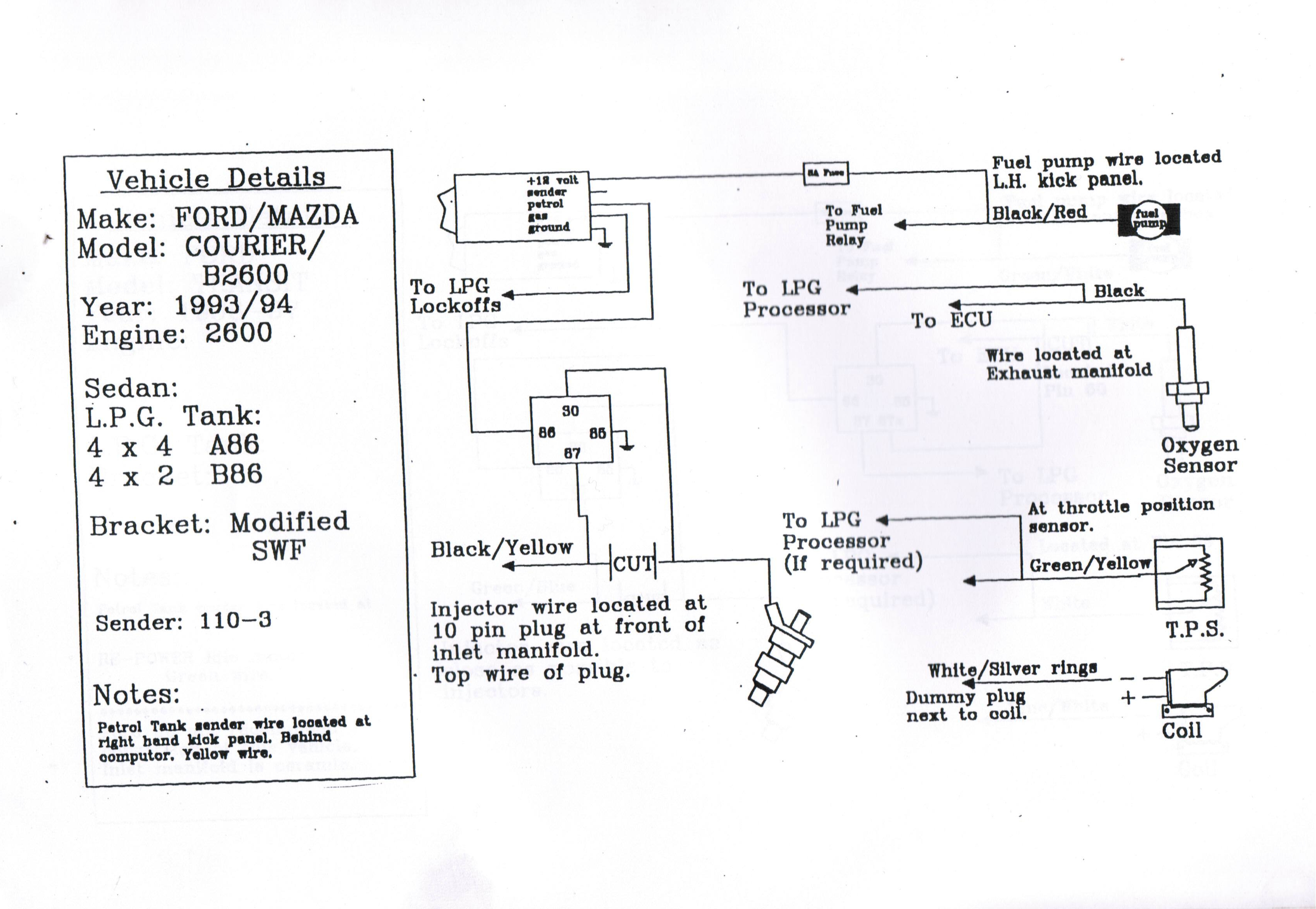

- FORD /MAZDA/COURIER/B2600 93-94
HOLDEN
- CAMIRA JD 88
- JACKAROO 92 V6 EF

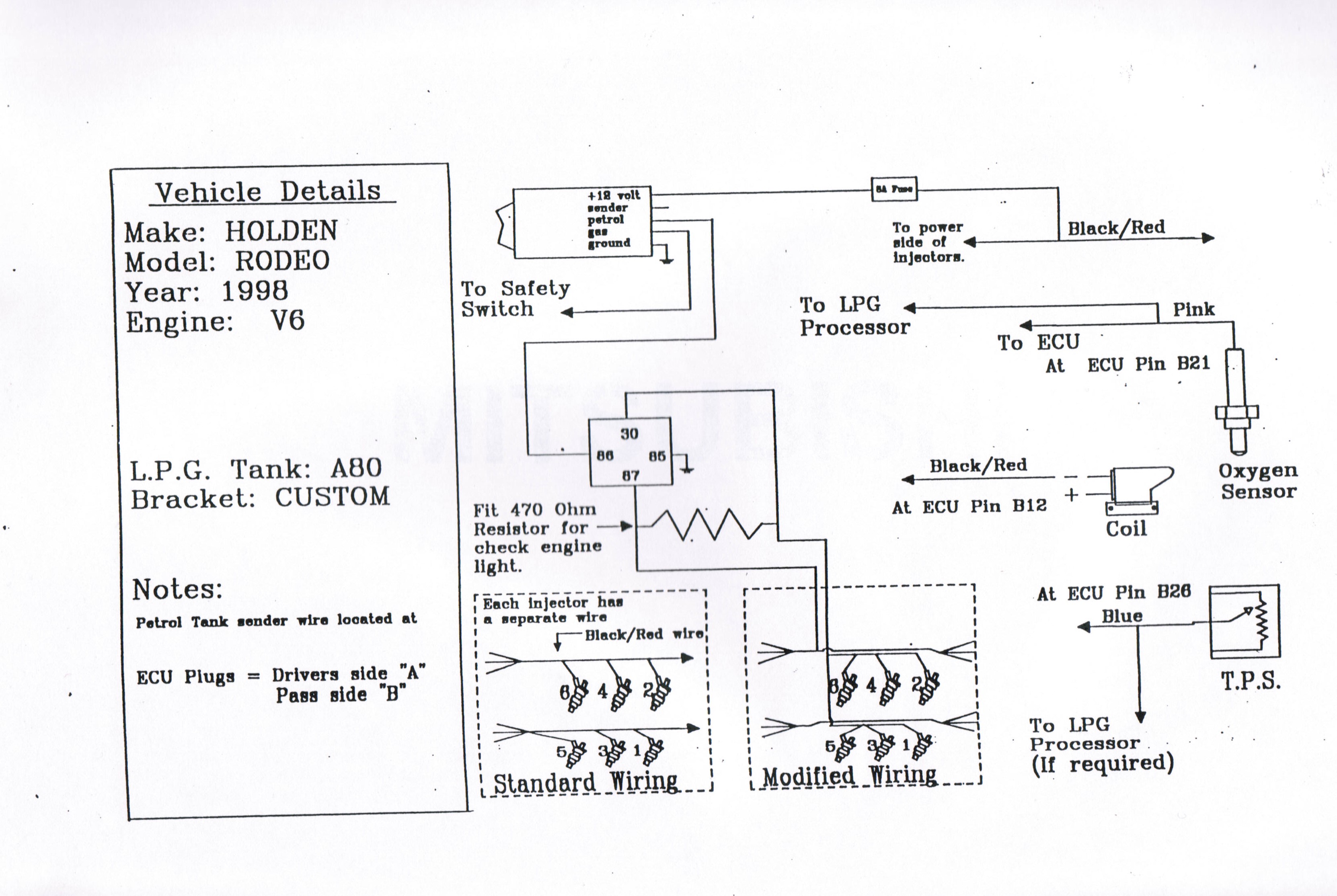

- RODEO 98 V6

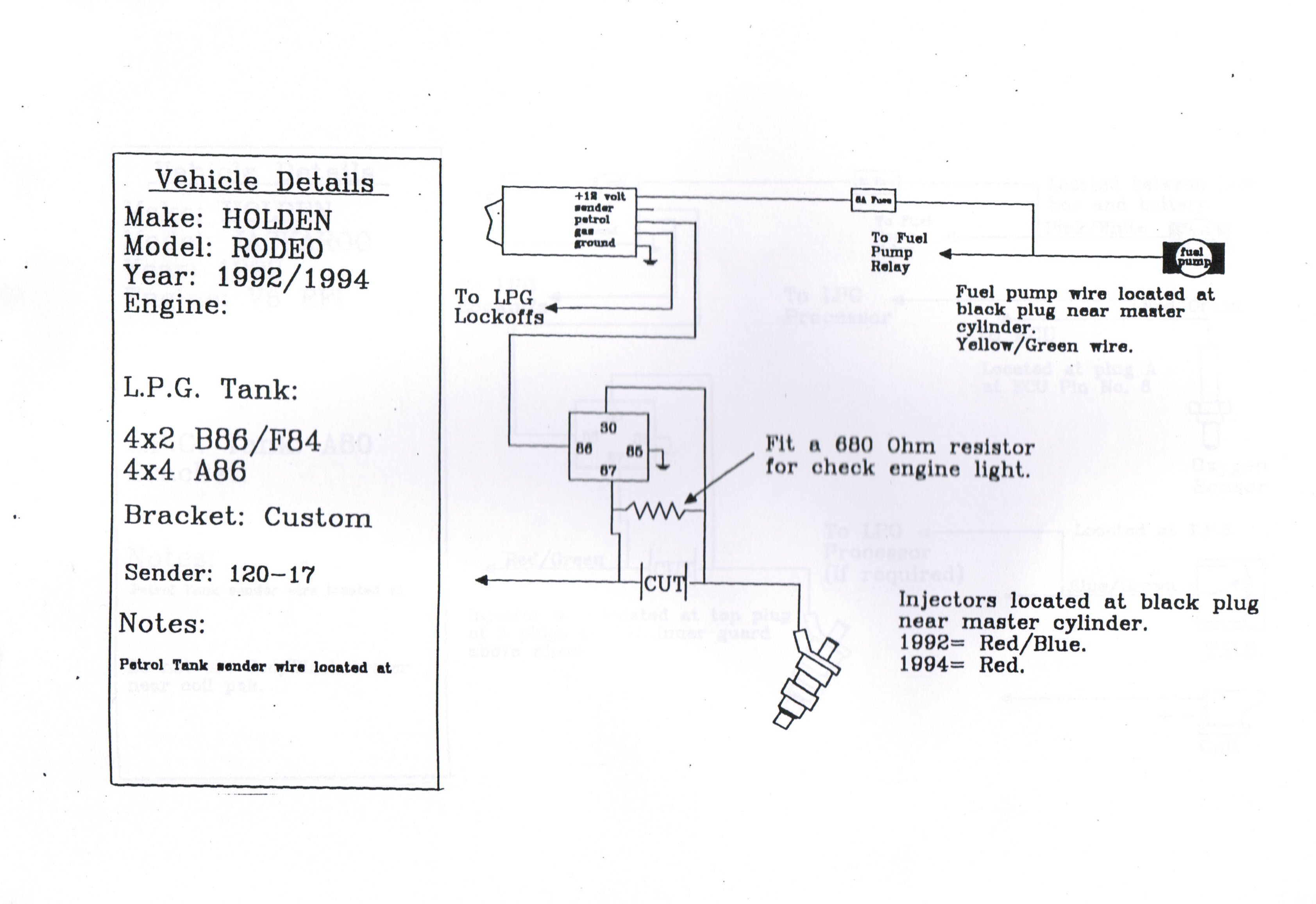

- RODEO 92/94

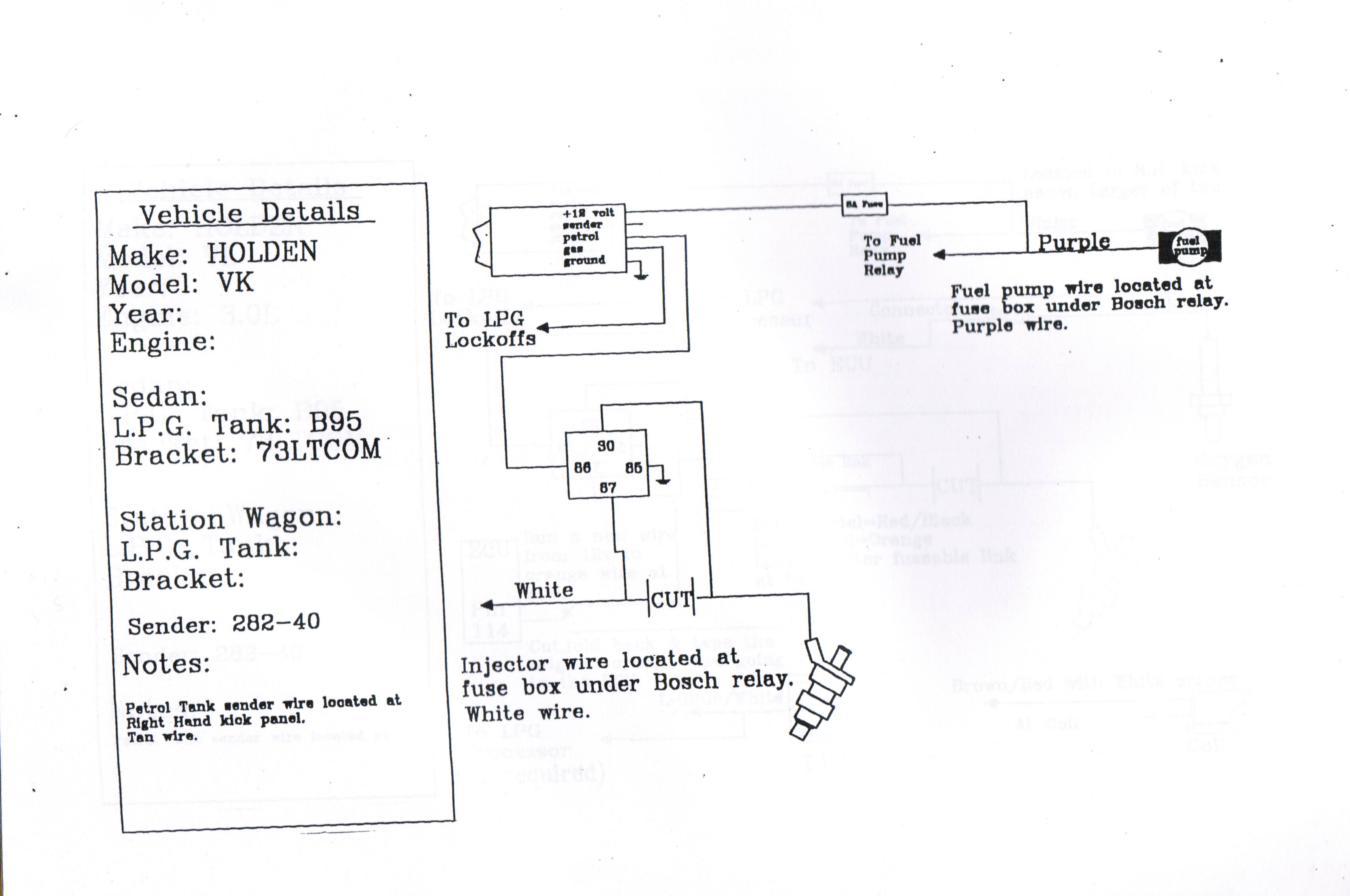

- VK
- VL 3.0L
- VN-VP & VR MANUAL 3.8L V6

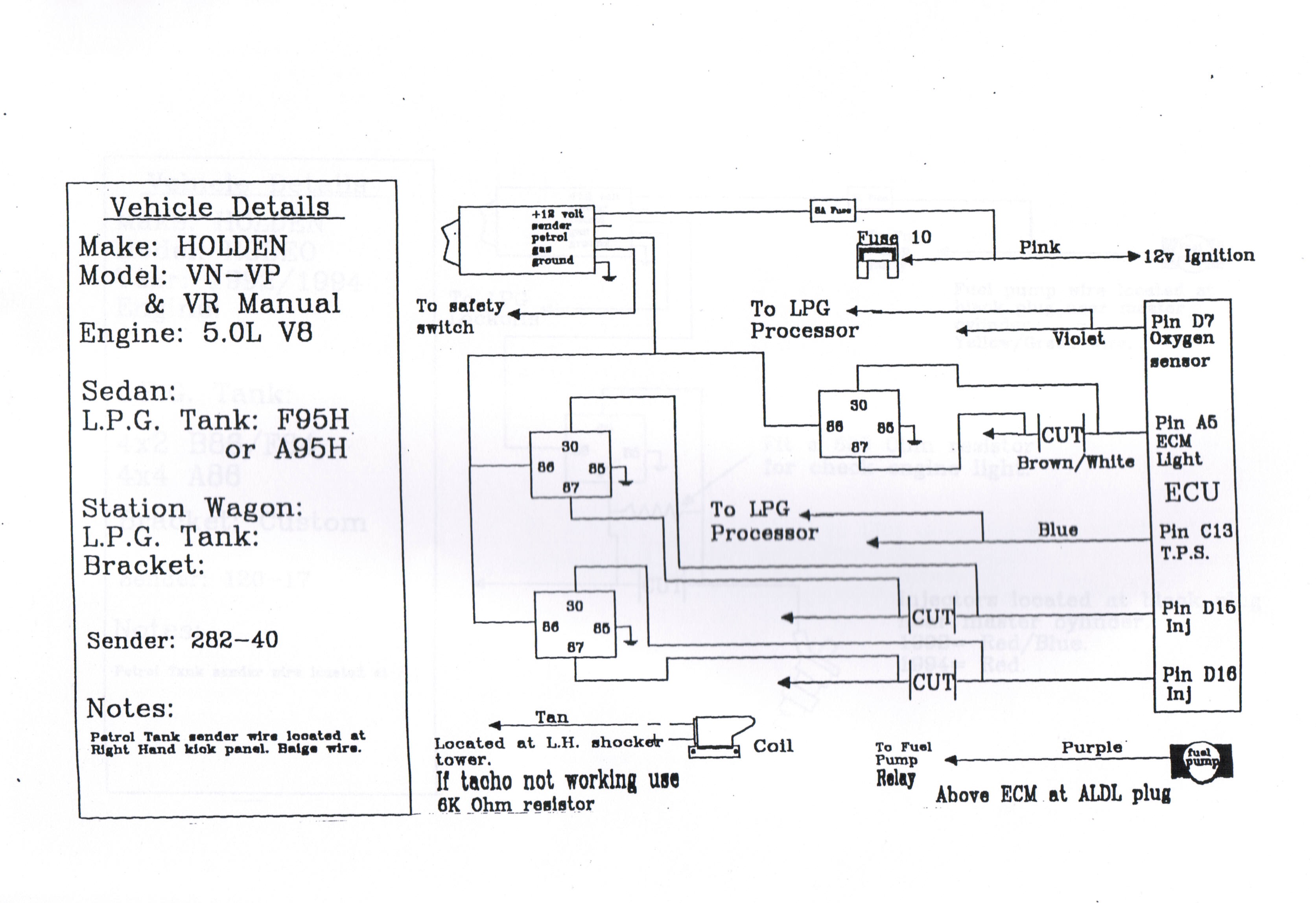

- VN-VP & VR MANUL 5.0 V8

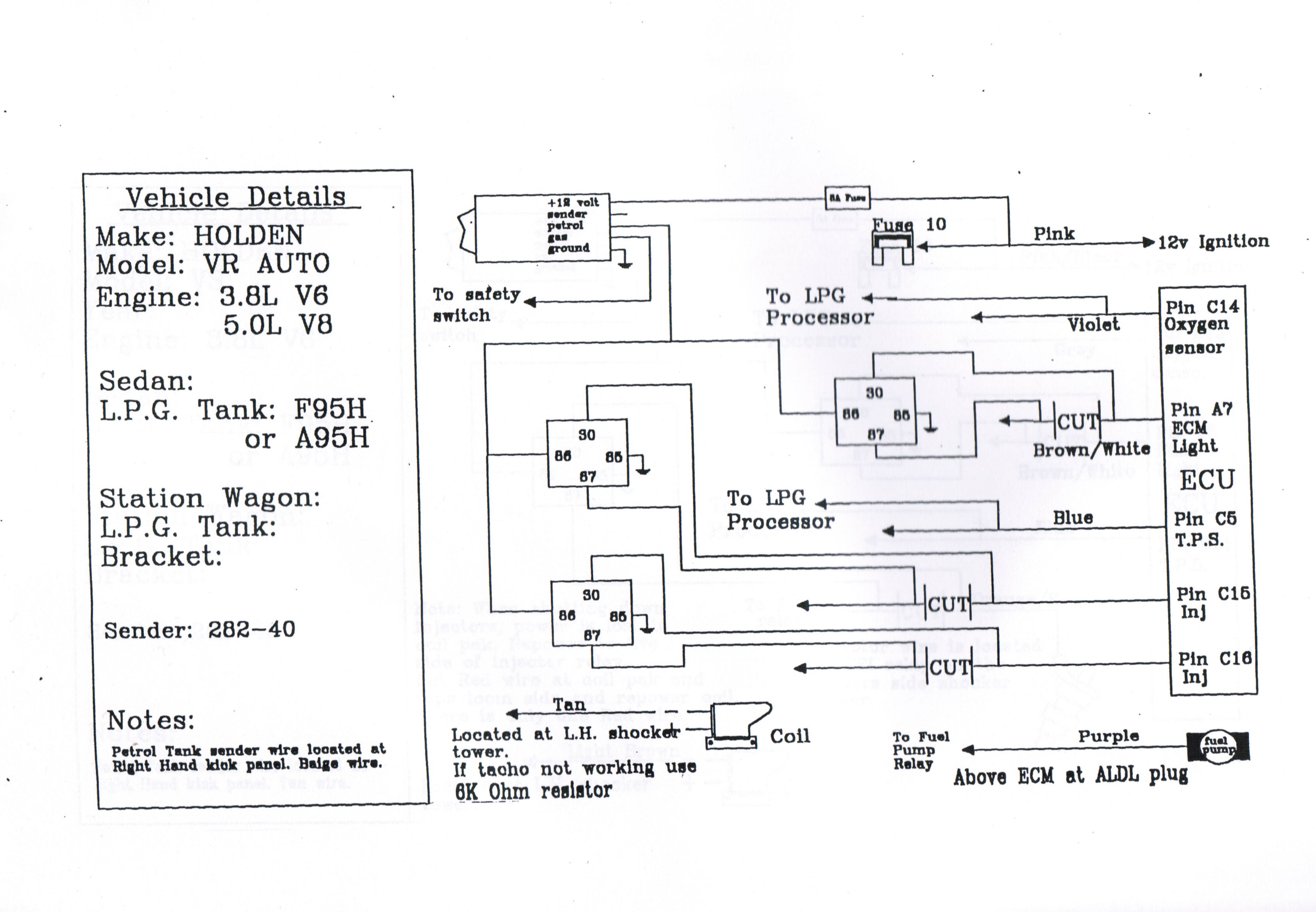

- VR AUTO 3.8L V6 / 5.0L V8
- VS 3.8L V6
MITSUBISHI

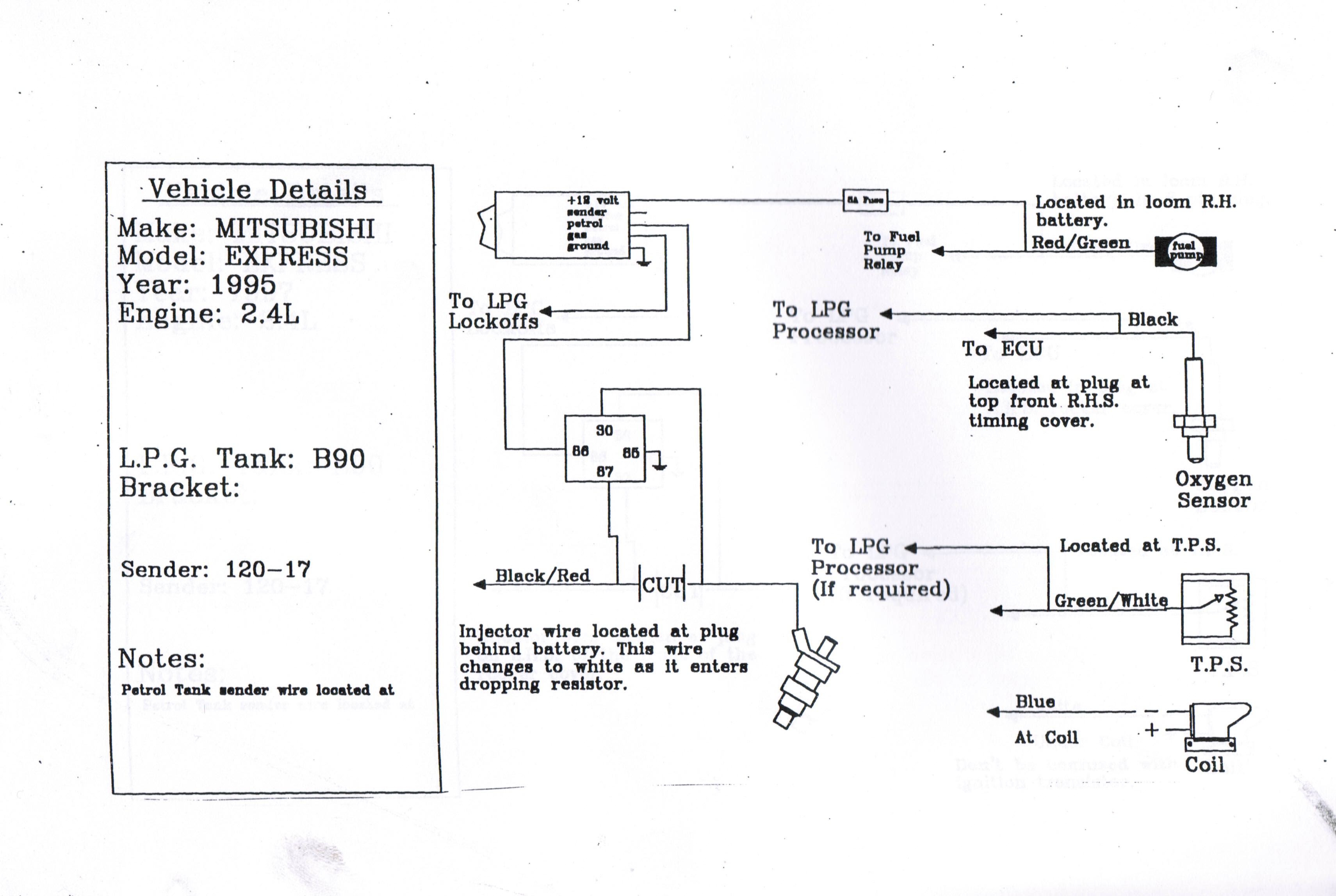

- EXPRESS 95 2.4L
- EXPRESS 97 2.4L
- MAGNA TE 96 3.0L V6

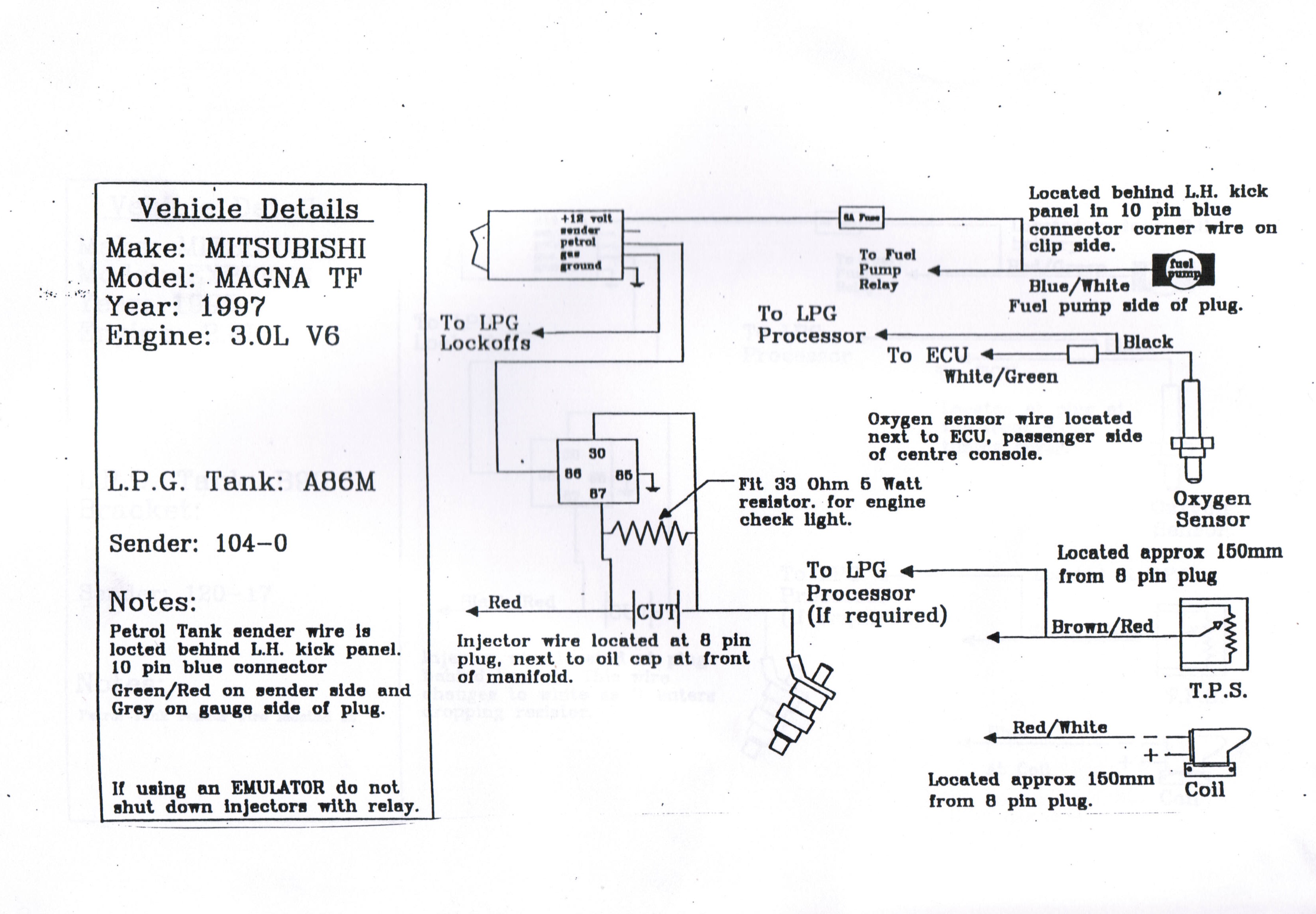

- MAGNA TF 97 3.0L V6
- MAGNA TN-TP
- MAGNA 92 3.0L V6

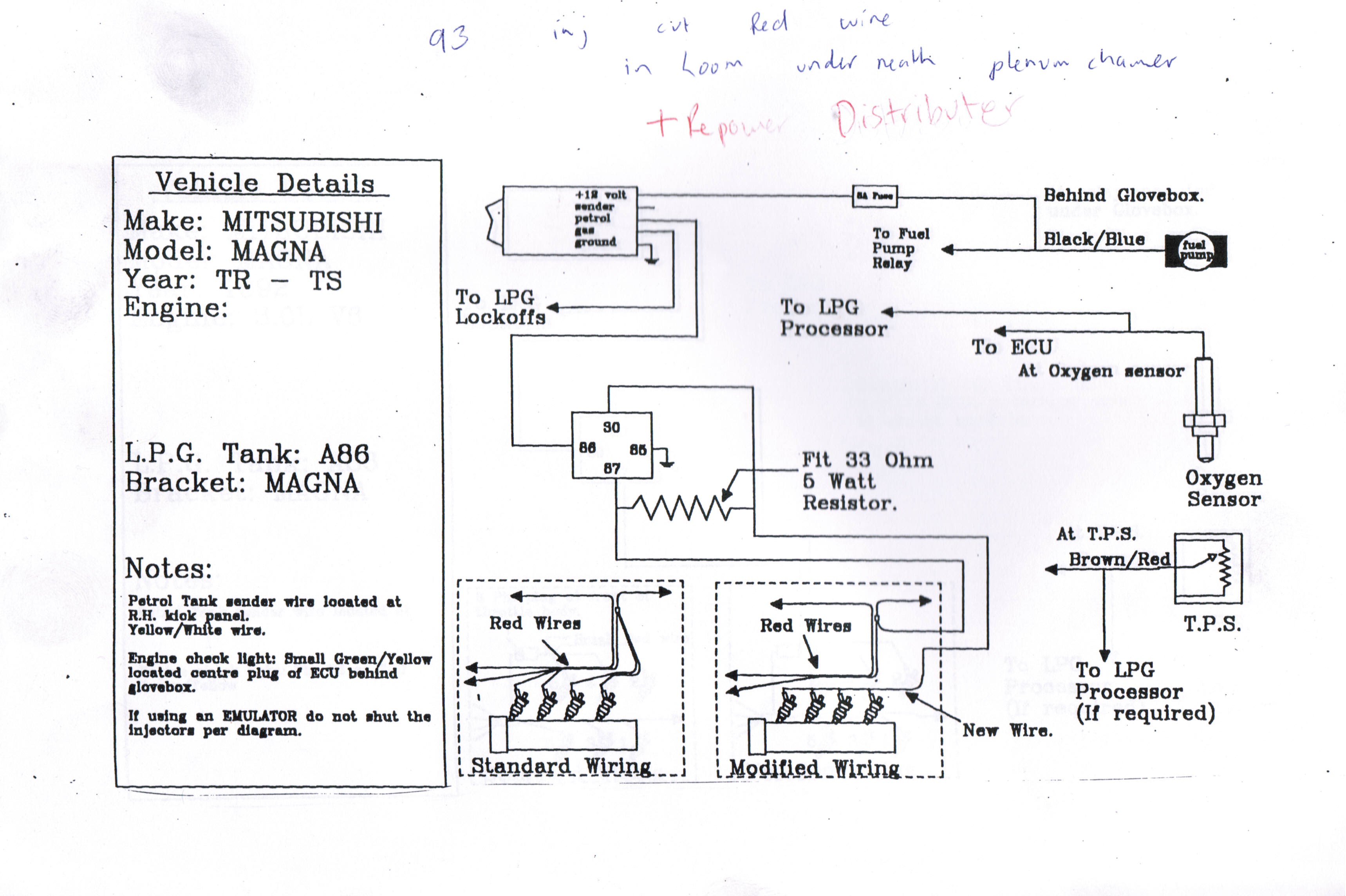

- MAGNA TR-TS
- PAJERO 88 3.0L V6
- PAJERO 91-95 3.0L V6

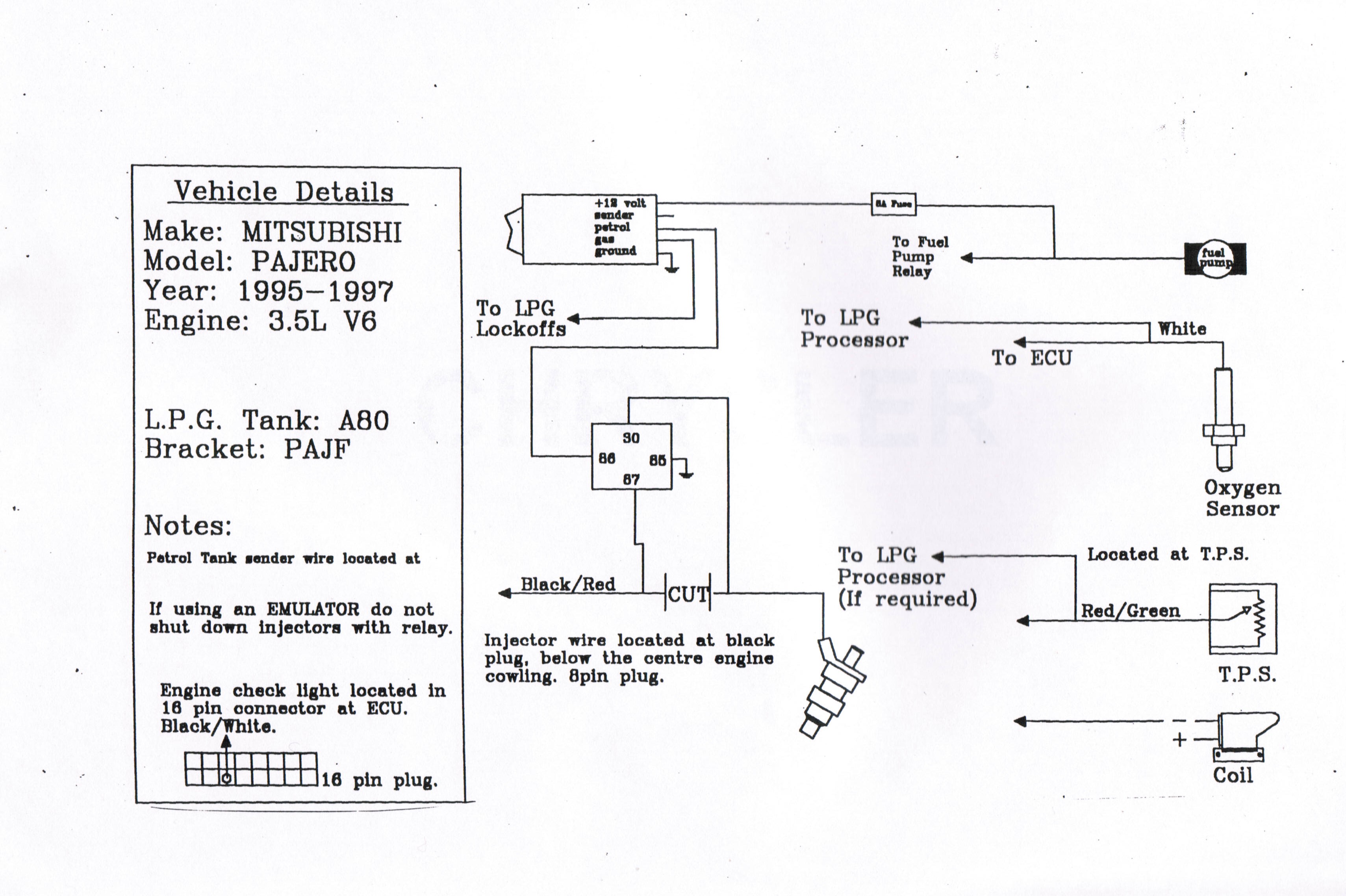

- PAJERO 95-97 3.5L V6
- TRITON V6
NISSAN

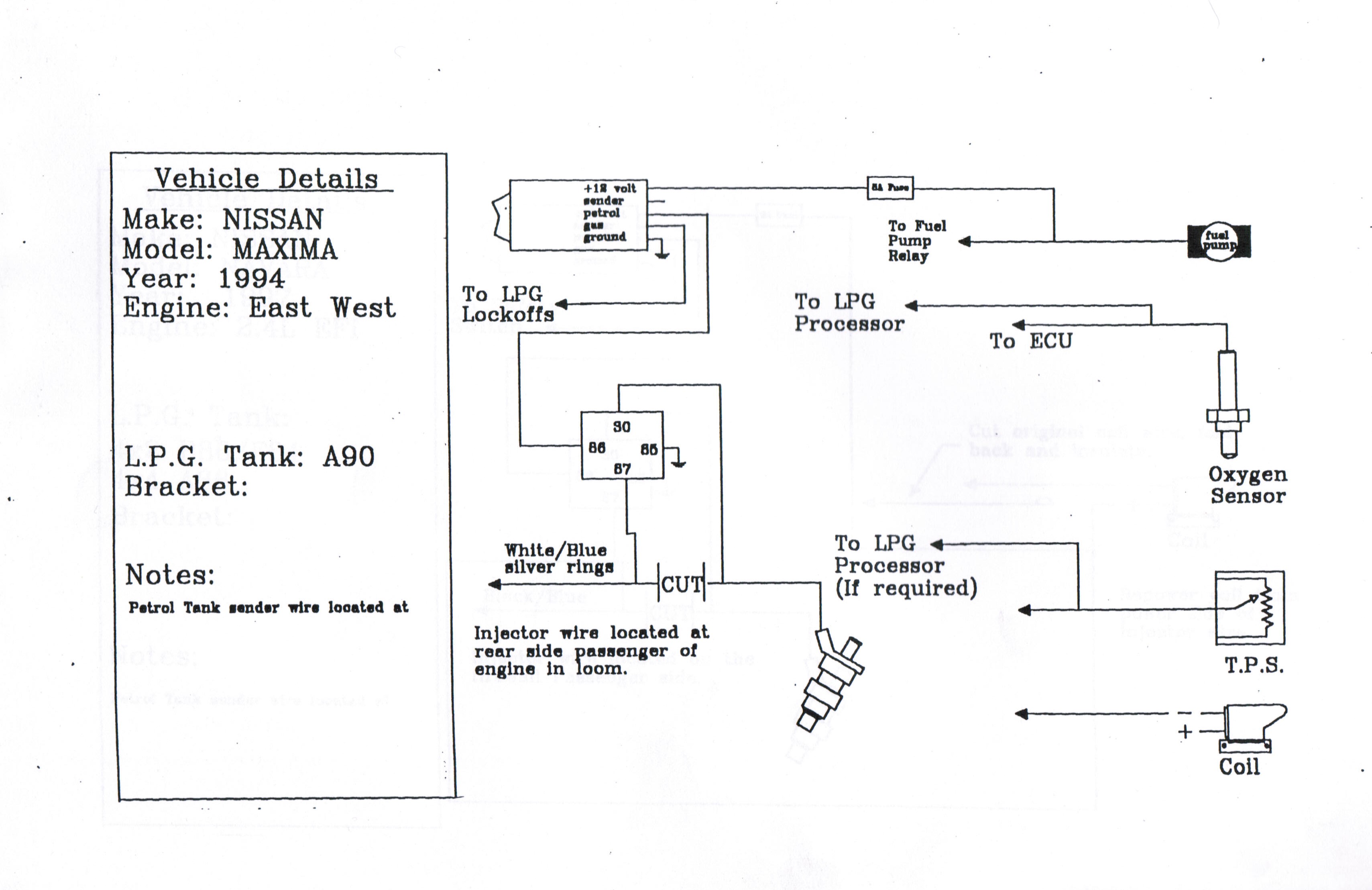

- MAXIMA 94 EAST/WEST

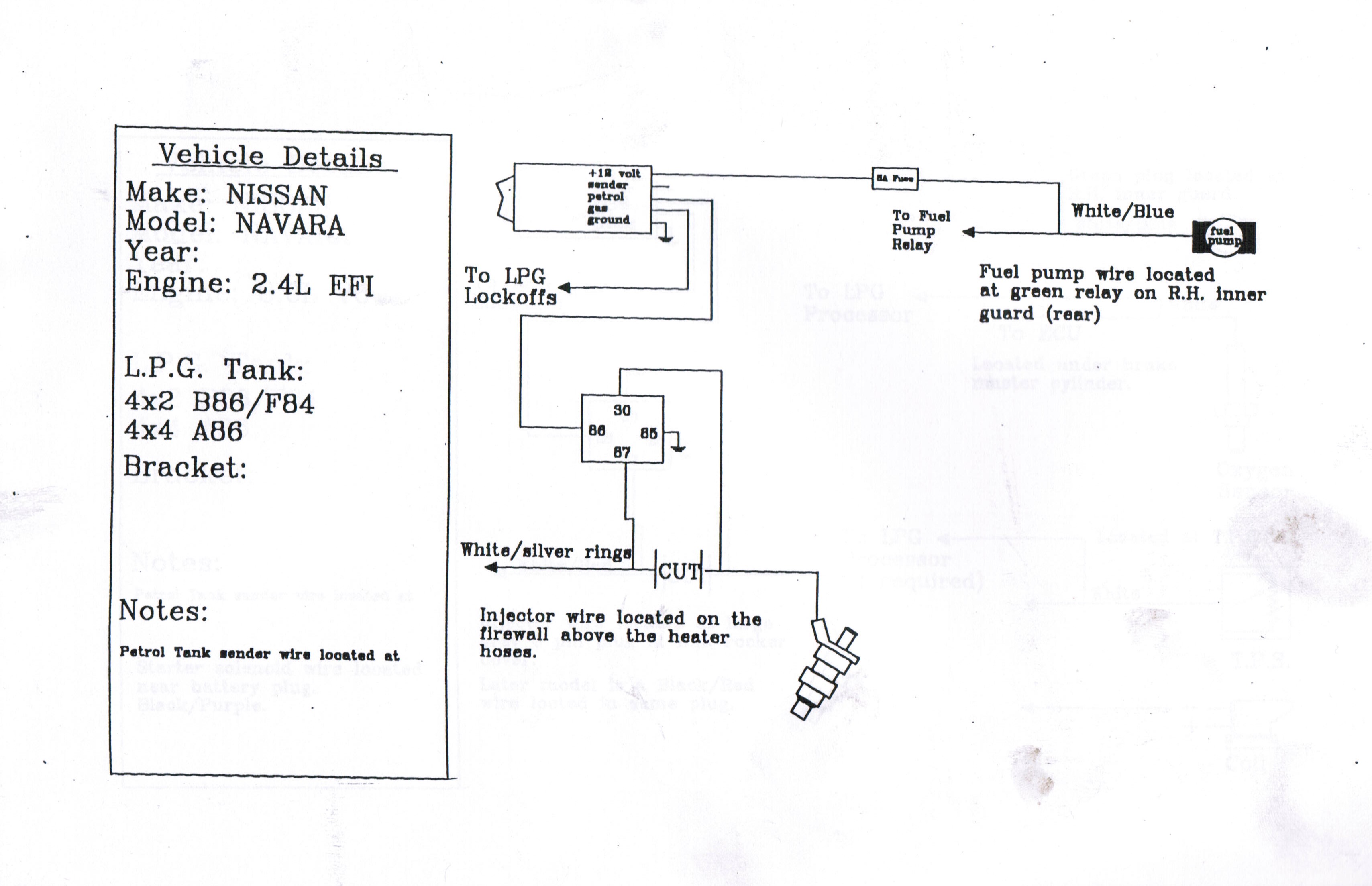

- NAVARA 2.4 EFI

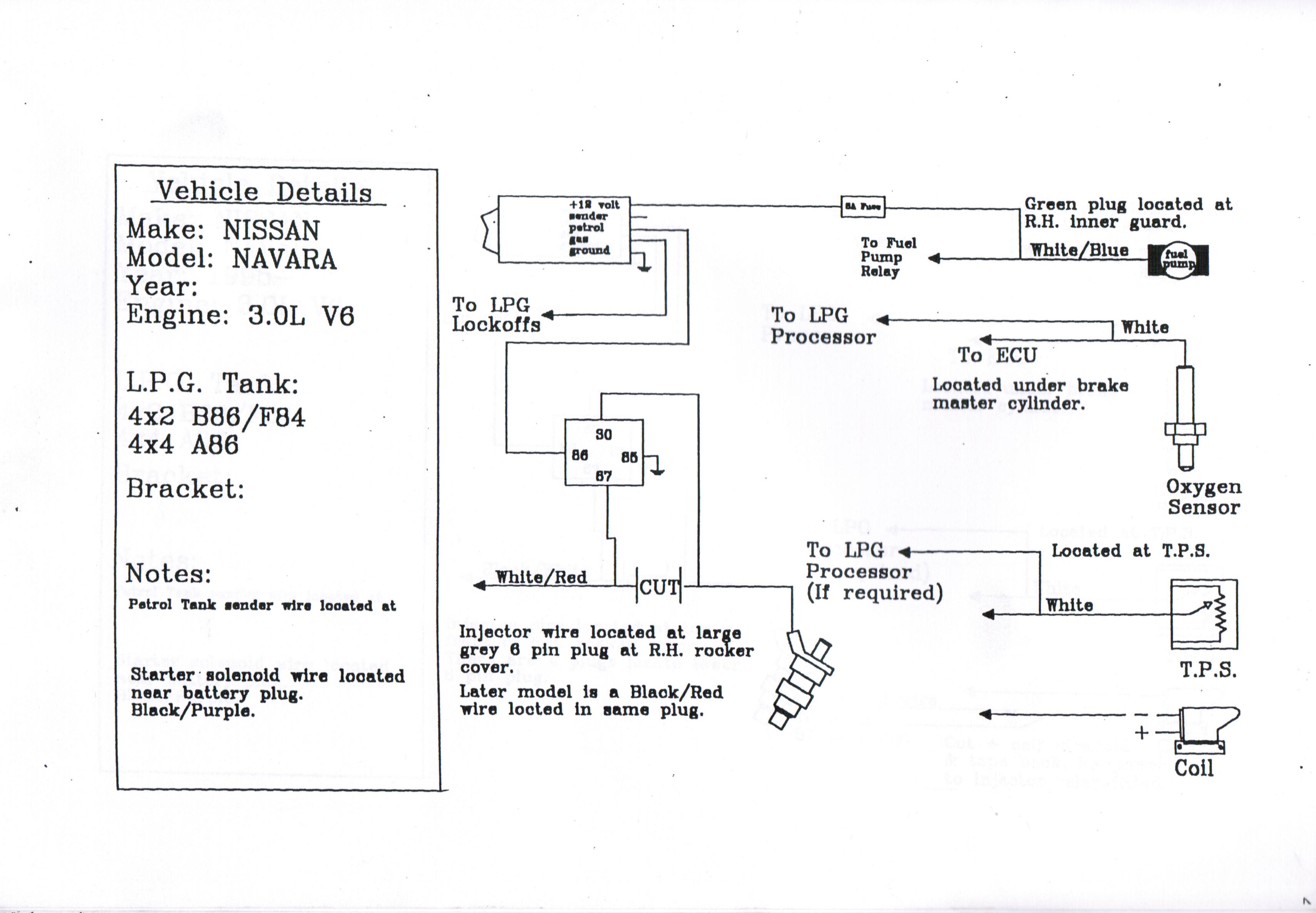

- NAVARA 3.0L V6
- NAVARA 95 3.0L V6

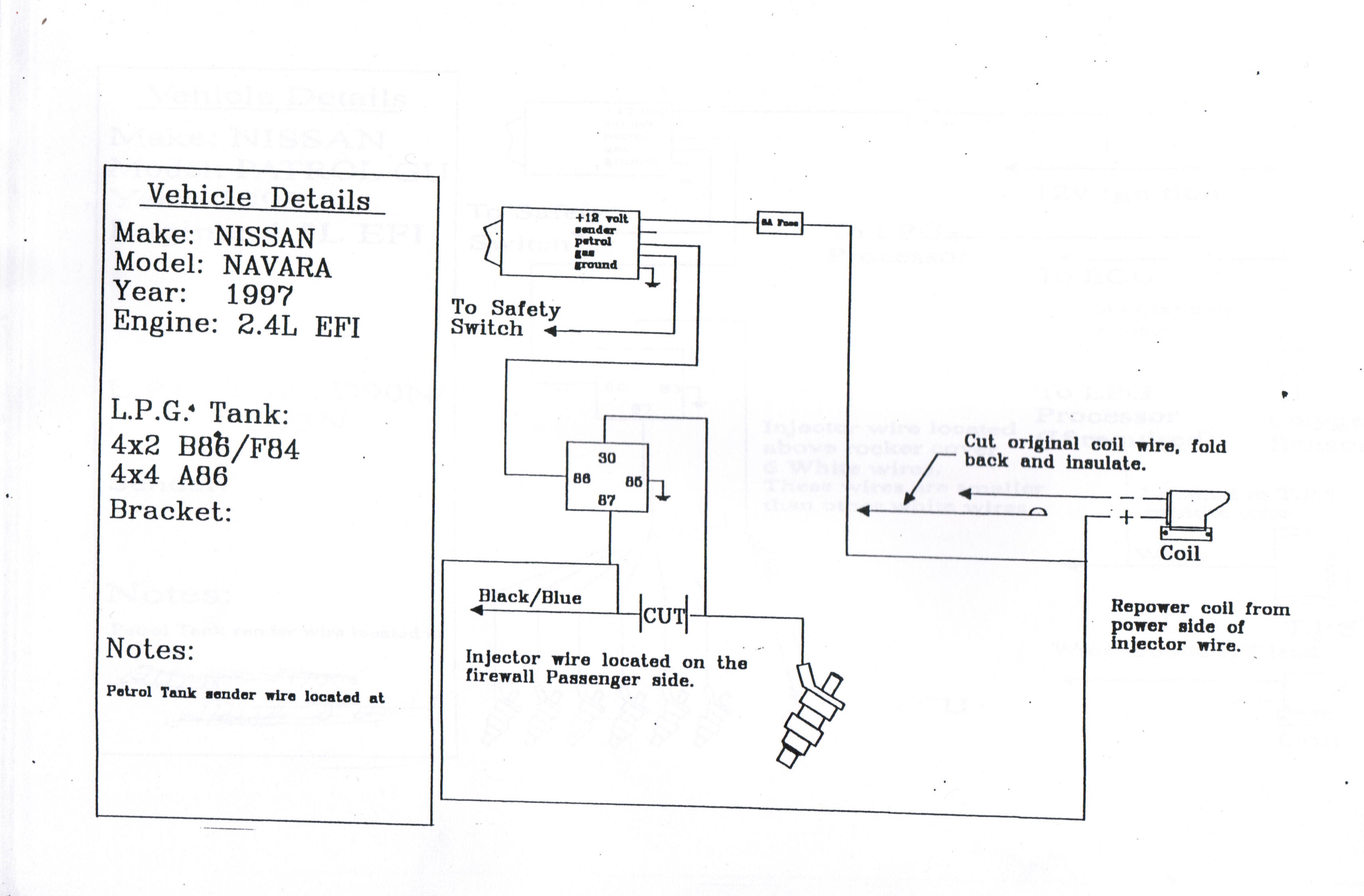

- NAVARA 97 2.4L EFI
- PATHFINDER 93 V6

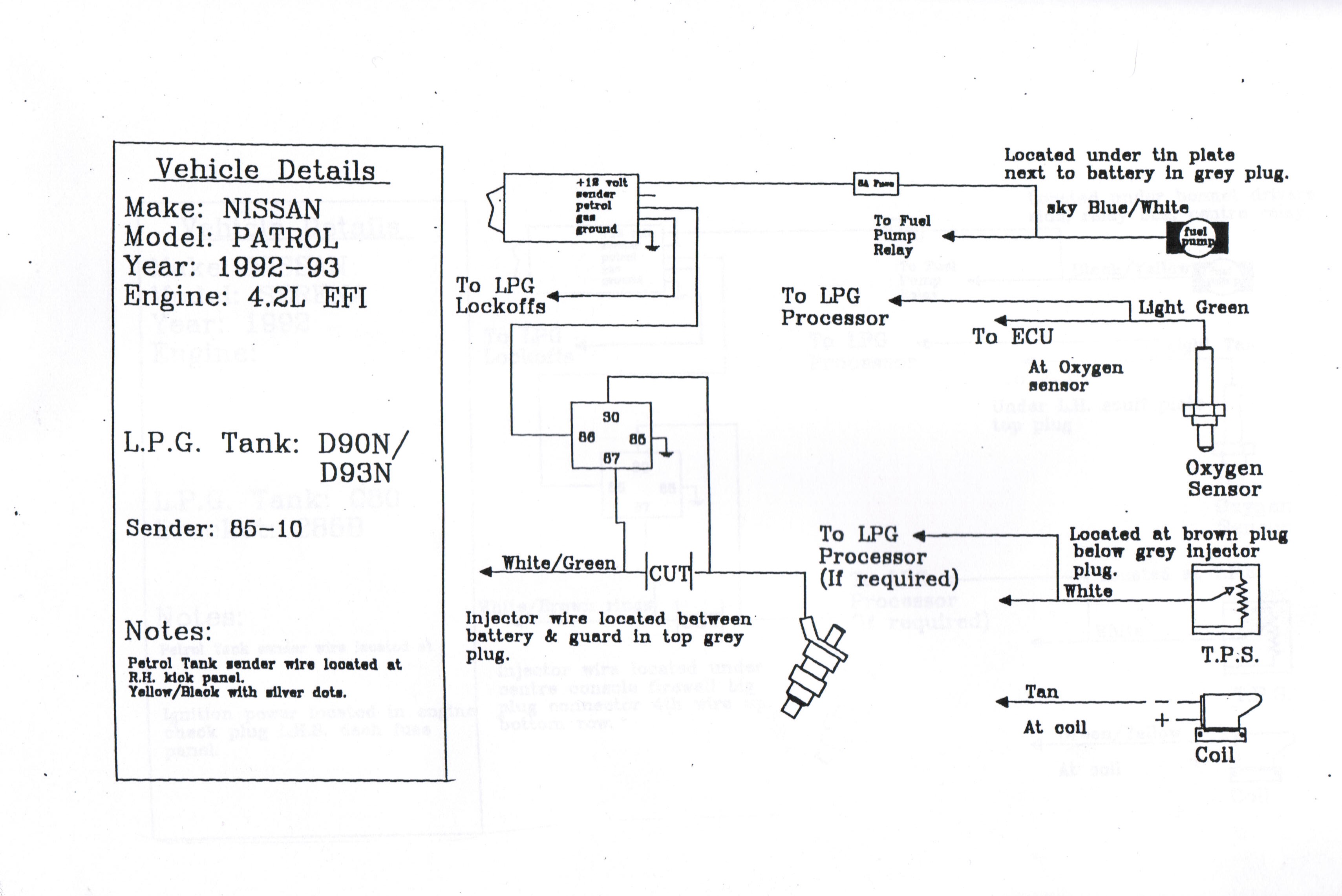

- PATROL 92-93 4.2L EFI
- PATROL GU 98 4.5 EFI

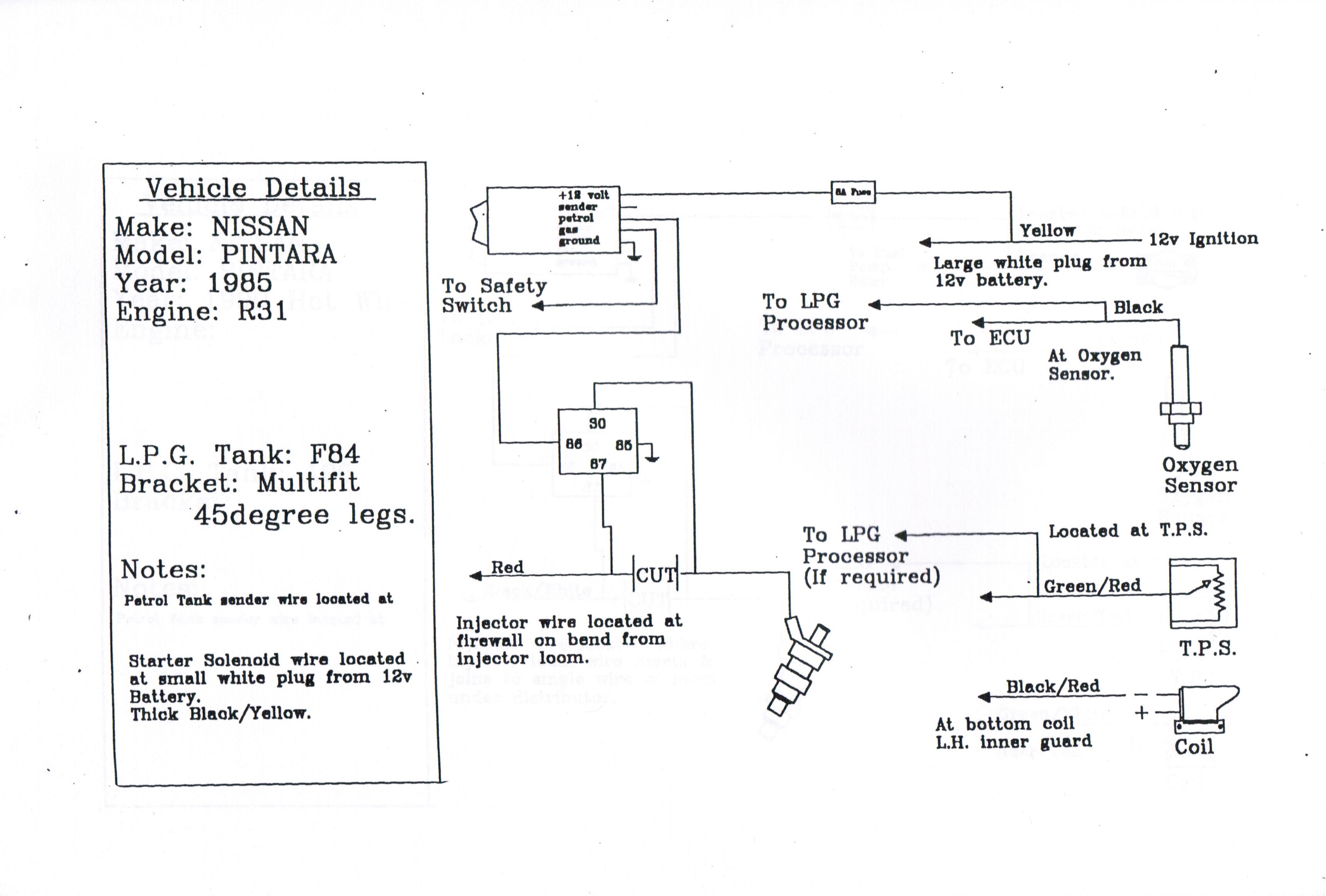

- PINTARA 85 R31

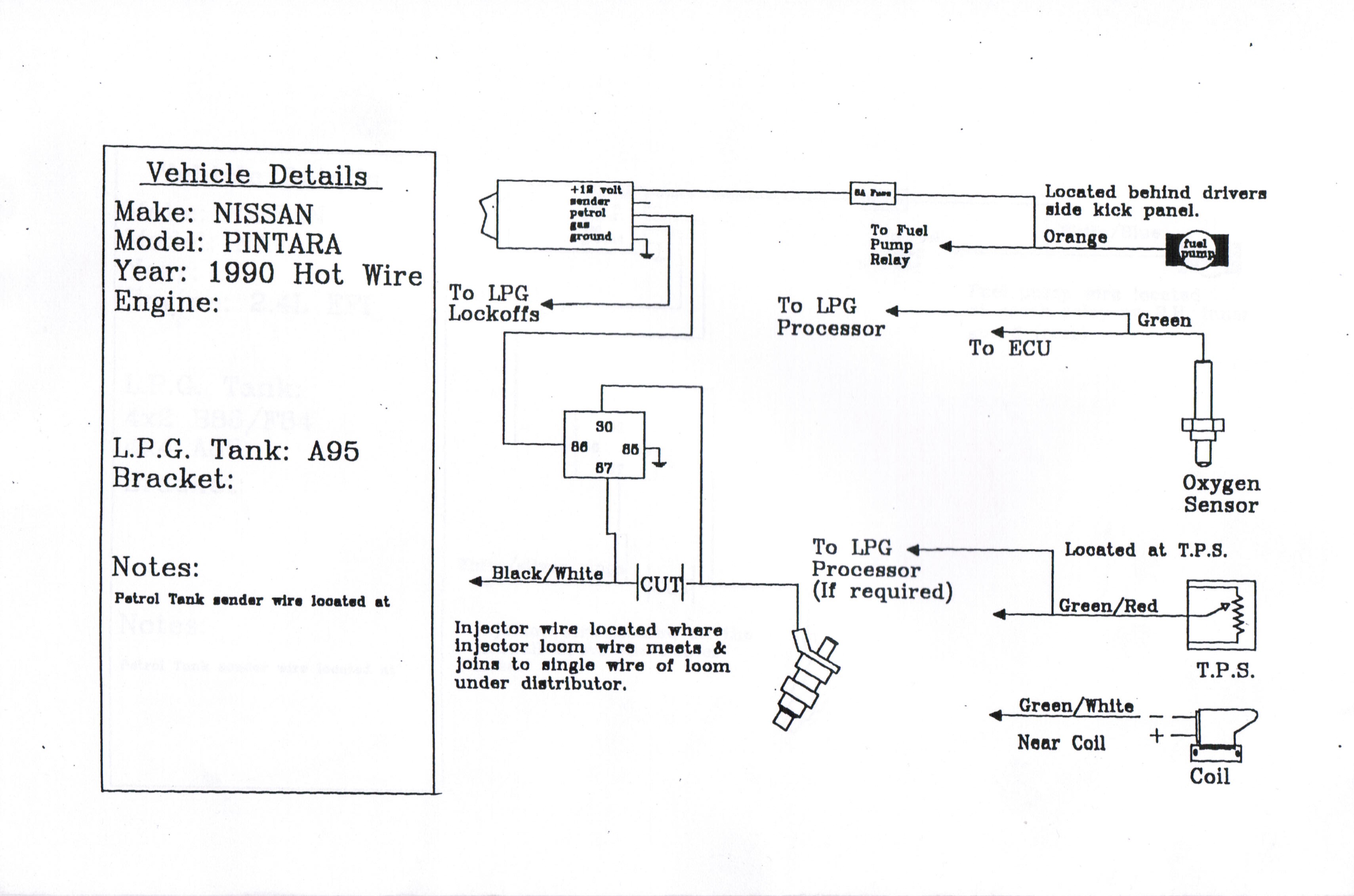

- PINTARA 90 HOT WIRE
- SERENA 92
- SKYLINE 87 3.0L
TOYOTA

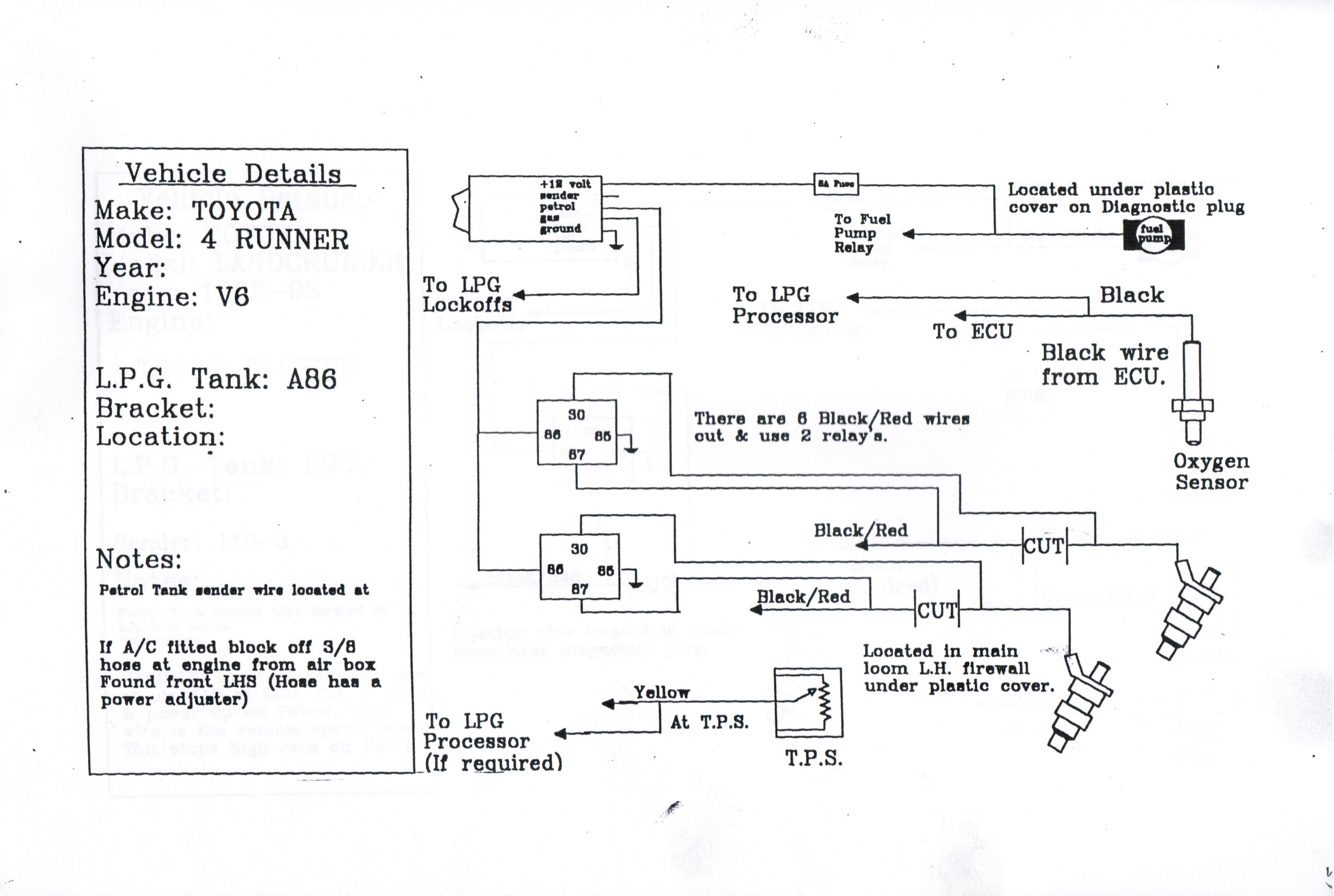

- 4 RUNNER V6
- CAMRY 93 2.2L
- CAMRY 93 V6 EFI

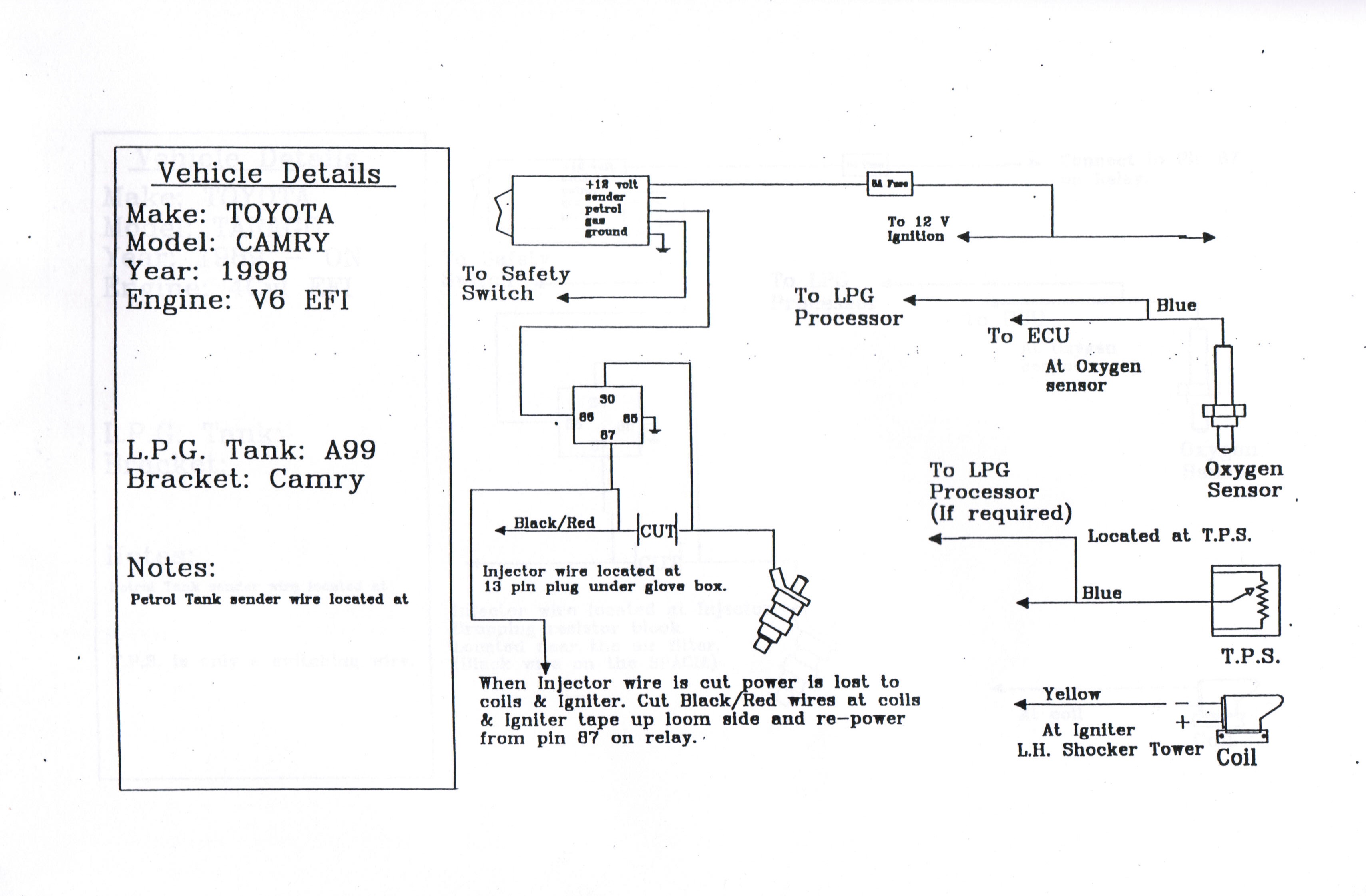

- CAMRY 98 V6 EFI

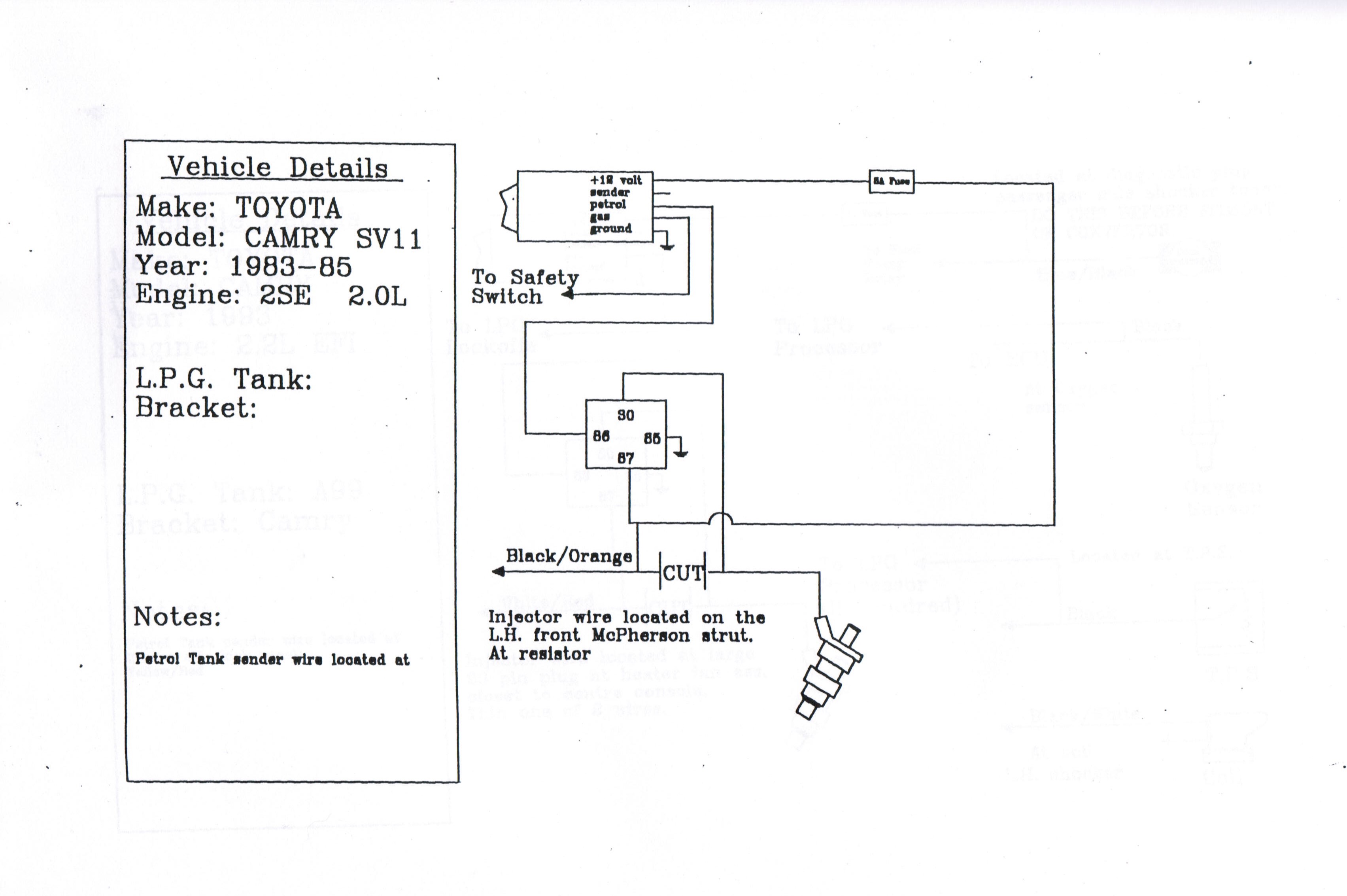

- CAMRY SV11 83-85 2SE 2.0L

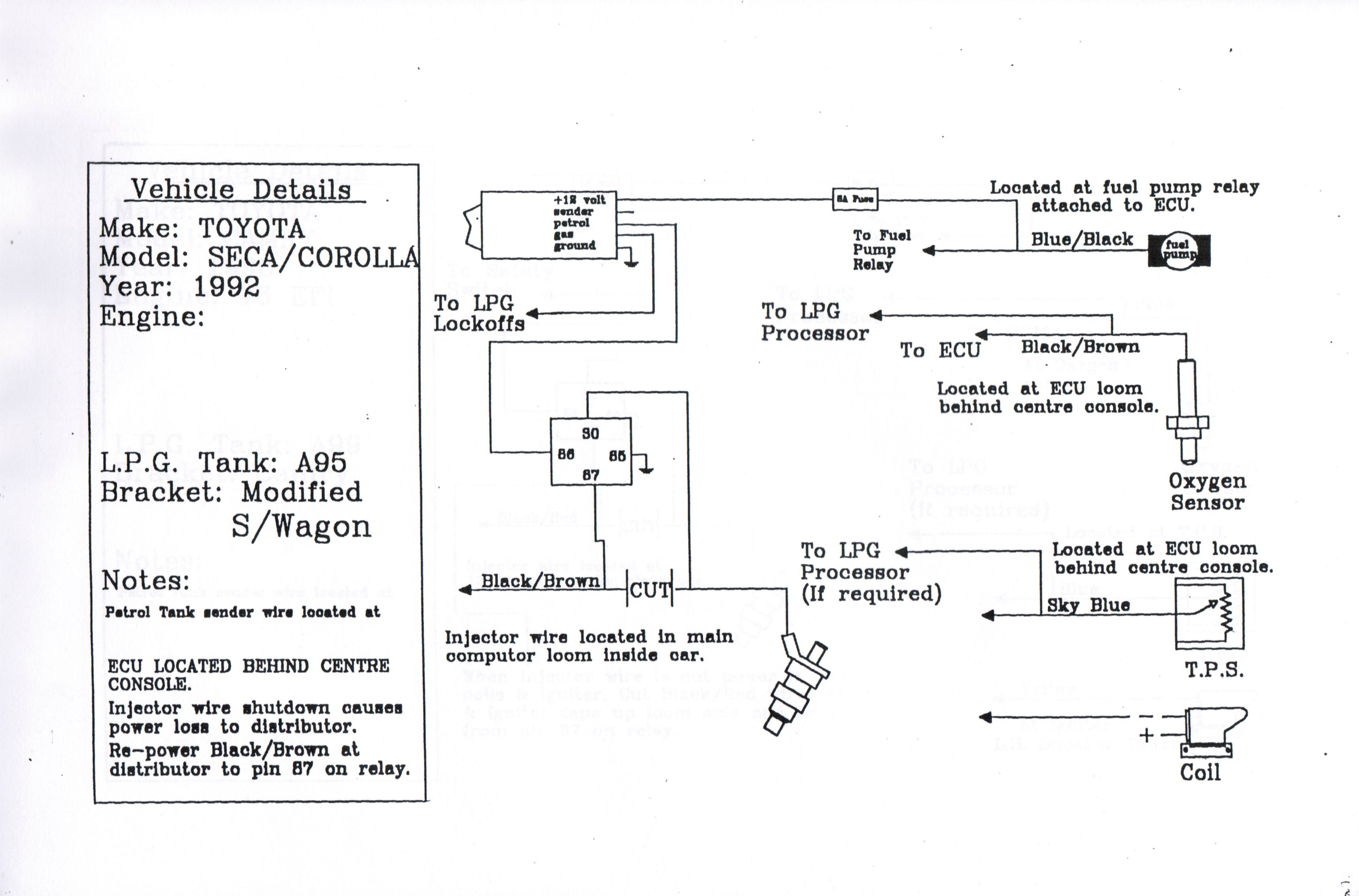

- SECA / COROLLA 92
- CRESSIDA 85
- HIACE 98 2RZ-E

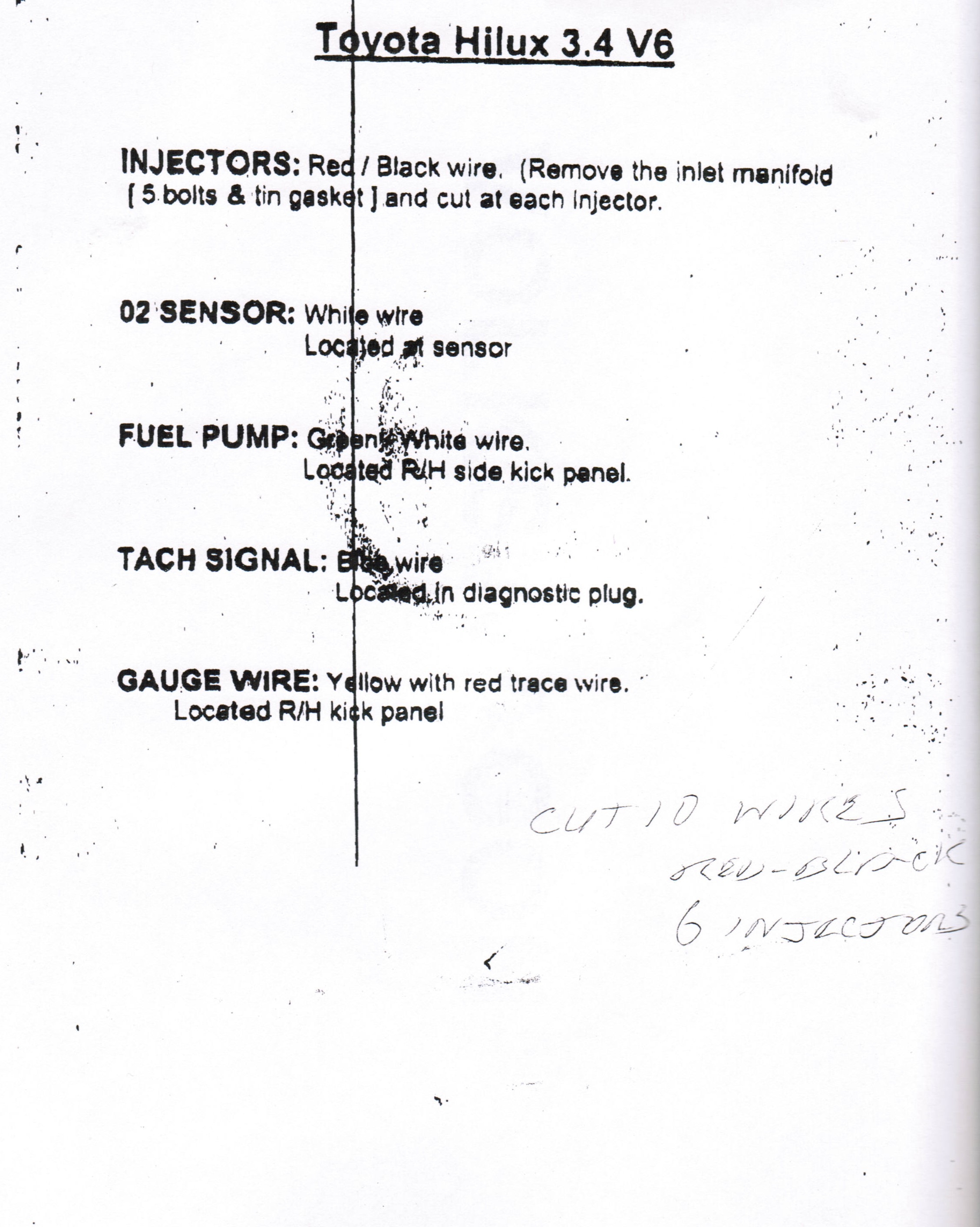

- HILUX 3.4L V6

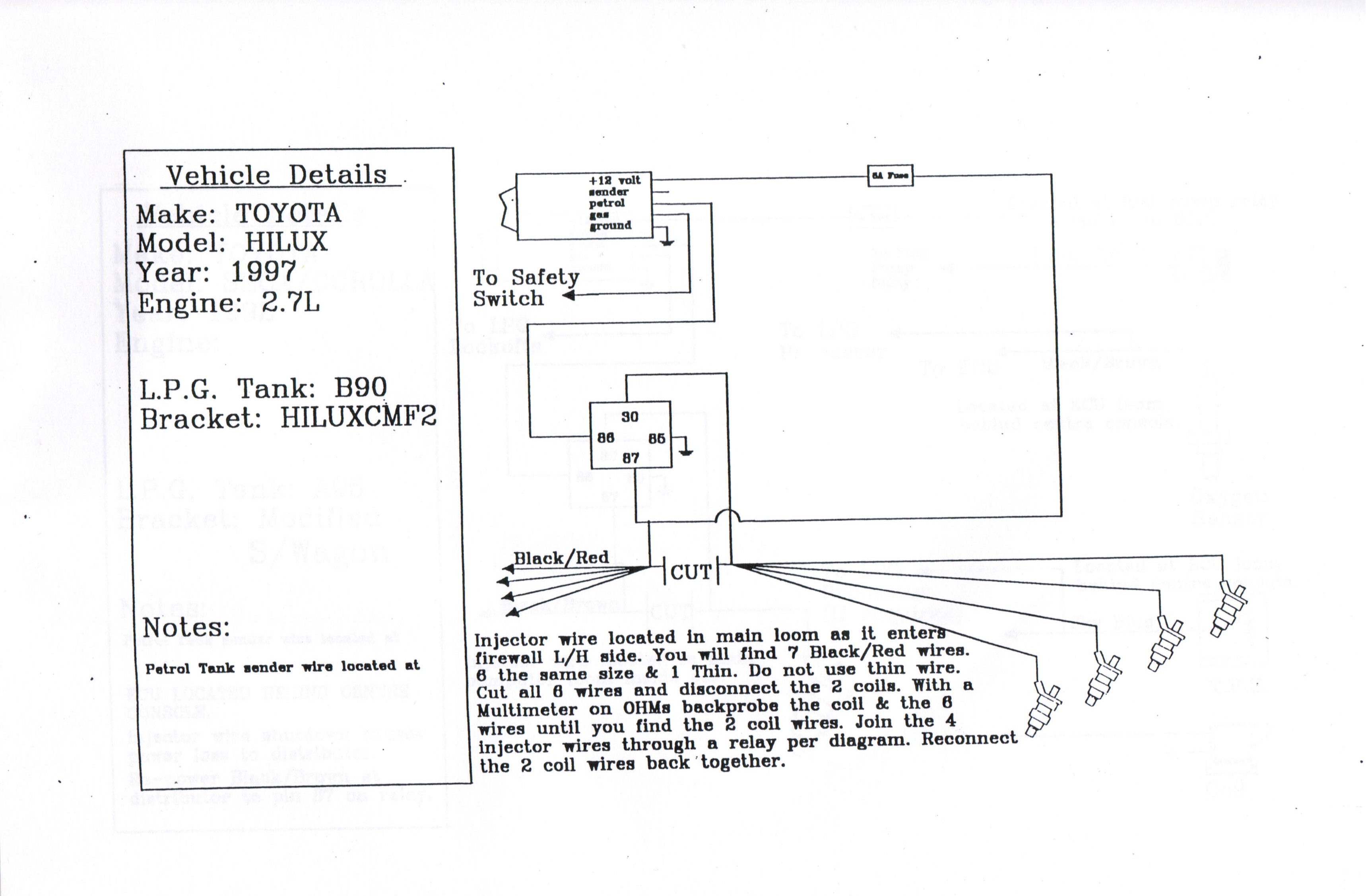

- HILUX 97 2.7L
- LANDCRUISER 92-93 UPDATED

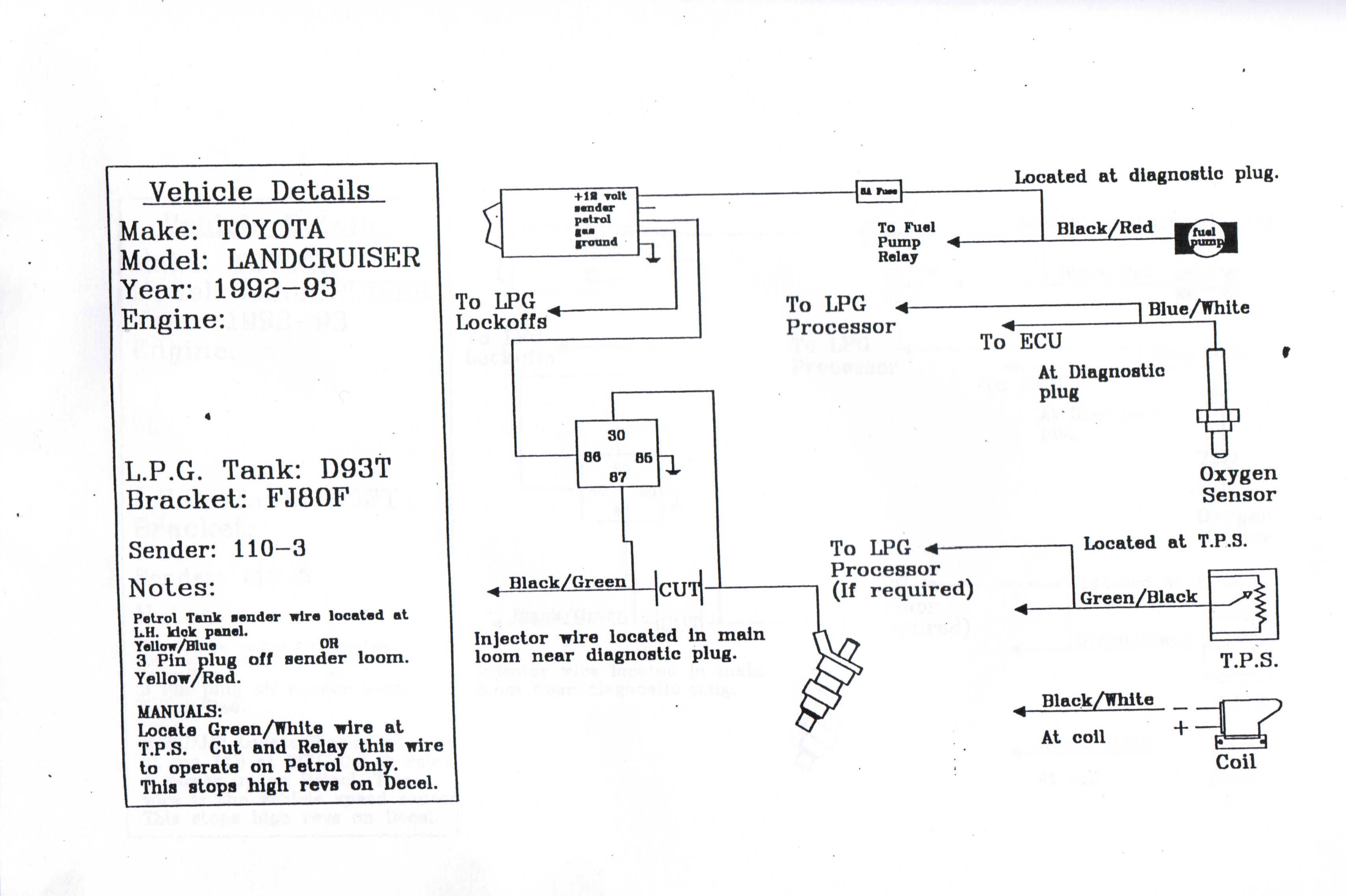

- LANDCRUISER 92-93

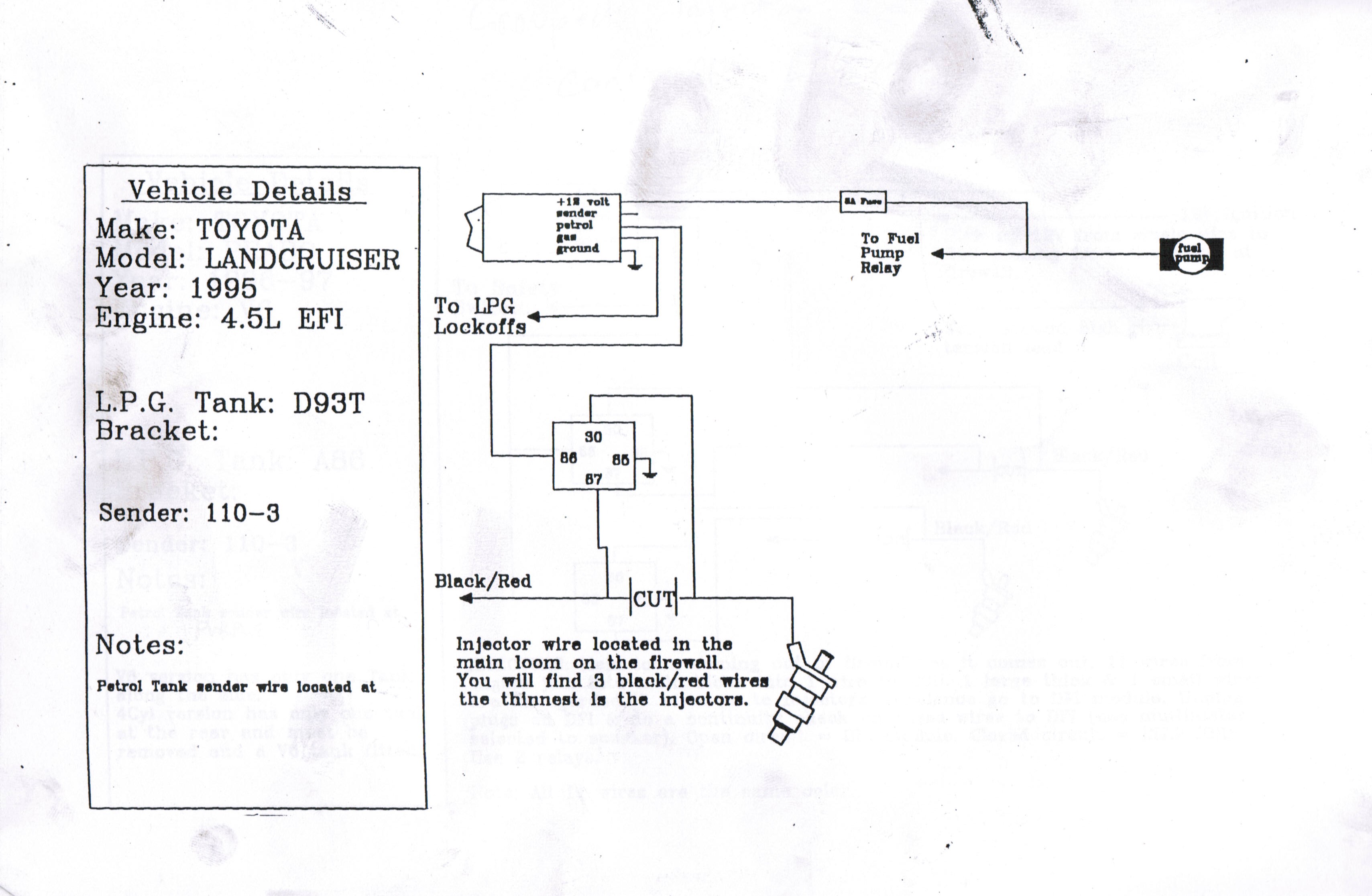

- LANDCRUISER 95 4.5L EFI
- LANDCRUISER 98 Fj100 4.5 EFI
- LANDCRUISER 92-93 TROOP CARRIER
- LANDCRUISER 92-93 TROOP CARRIER UPDATED

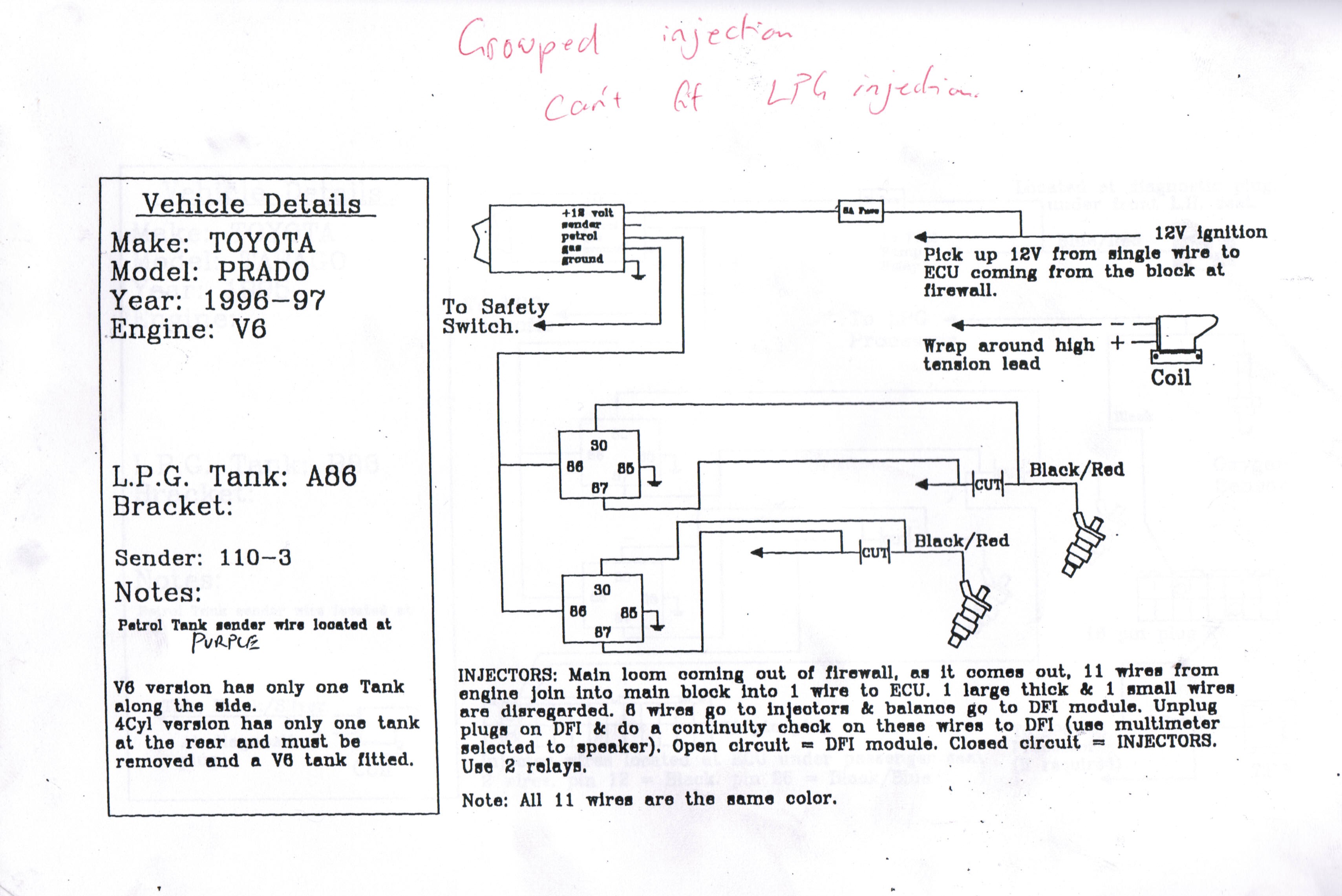

- PRADO 96-97 V6

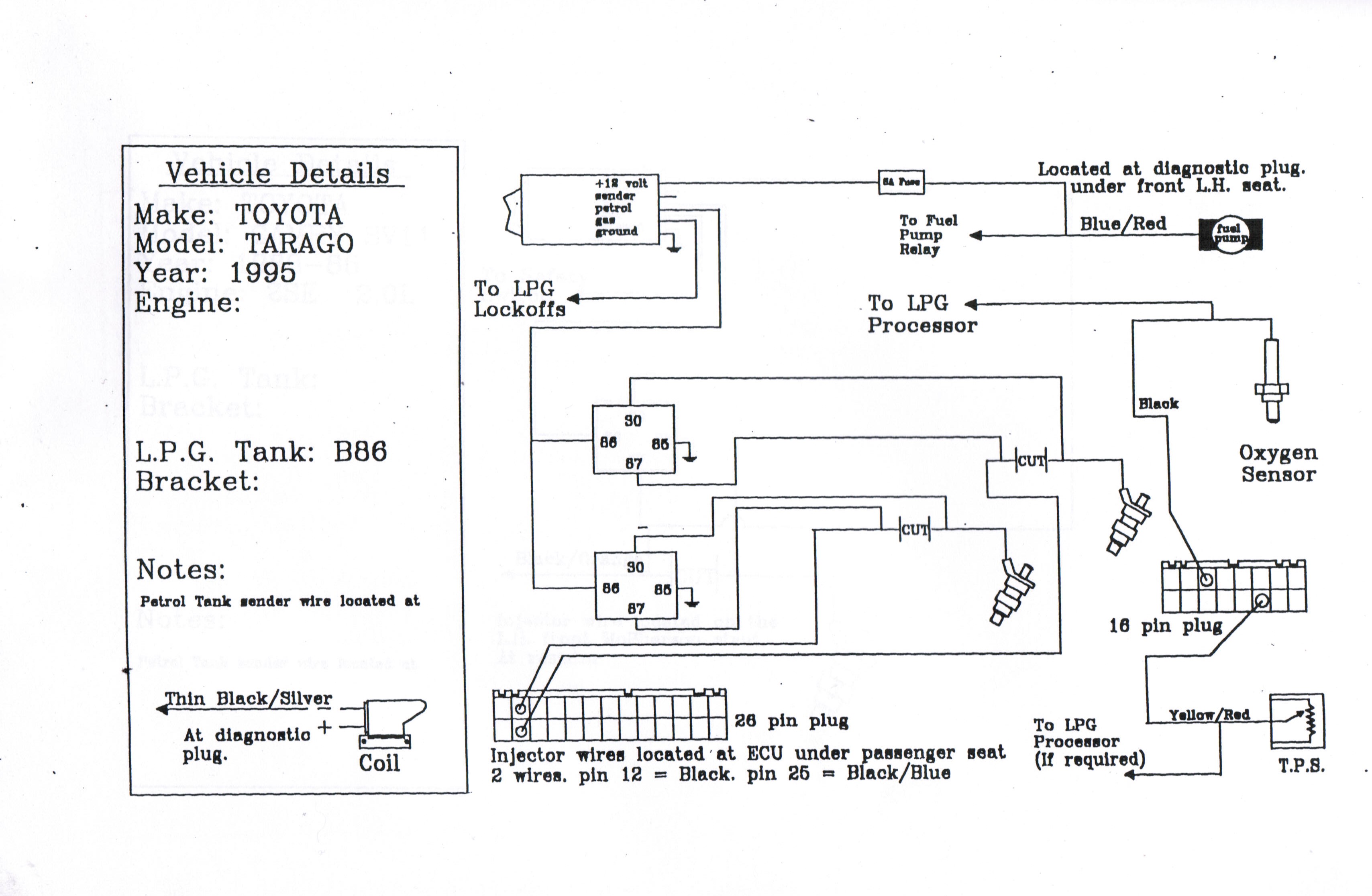

- TARAGO 95

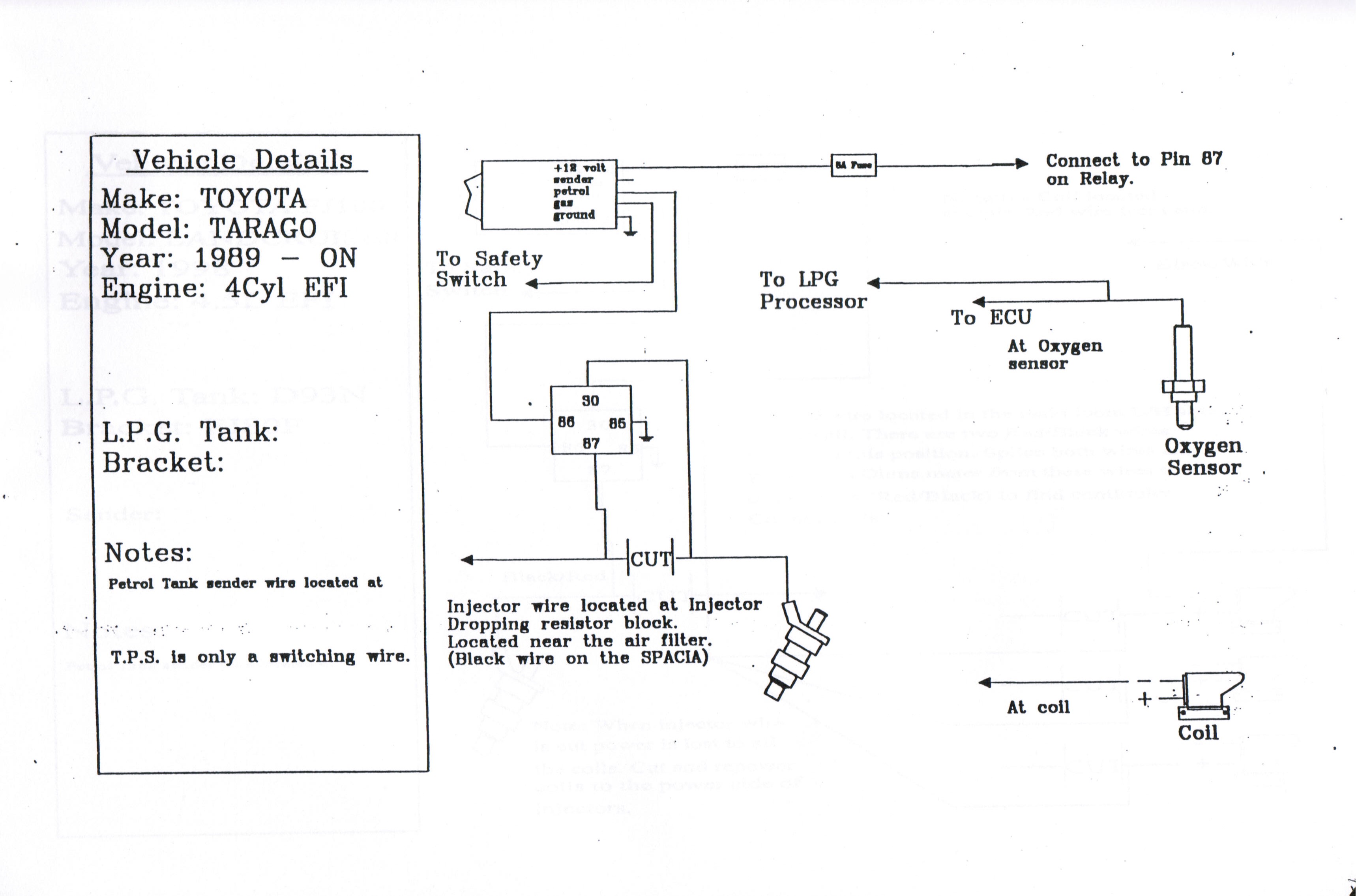

- TARAGO 89-ON 4CYL EFI
